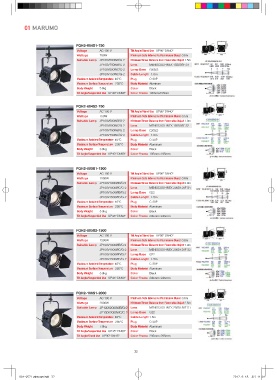

Page 34 - 루스케이프 방송무대 지명원

01 MARUMO

FQH2-604S1-750
Voltage AC 100 V Tilt Angle/Stand Use UP90° DN40°
Wattage 750W Minimum Safe Interval to Flammable Object 0.5m
Suitable Lamp JP100V500WB/G-2 Minimum Throw Distance from Flammable Object 1.5m
JP100V750WB/G-2 Lens MENISCUS HIVEX 150D95F S1
JP100V500WC/G-2 Lamp Base GX9.5
JP100V750WC/G-2 Cable Length 1.0m
Maximum Ambient Temperature 40°C Plug C-30P
Maximum Surface Temperature 230°C Body Material Aluminum
Body Weight 3.8kg Color Black
Tilt Angle/Suspended Use UP40° DN90° Color Frame 195mm×195mm

FQH2-604S2-750
Voltage AC 100 V Tilt Angle/Stand Use UP90° DN40°
Wattage 750W Minimum Safe Interval to Flammable Object 0.5m
Suitable Lamp JP100V500WB/G-2 Minimum Throw Distance from Flammable Object 1.0m
JP100V500WC/G-2 Lens MENISCUS HIVEX 150D95F S2
JP100V750WB/G-2 Lamp Base GX9.5
JP100V750WC/G-2 Cable Length 1.0m
Maximum Ambient Temperature 40°C Plug C-30P
Maximum Surface Temperature 230°C Body Material Aluminum
Body Weight 3.8kg Color Black
Tilt Angle/Suspended Use UP40° DN90° Color Frame 195mm×195mm

FQH2-805S1-1500
Voltage AC 100 V Tilt Angle/Stand Use UP90° DN40°
Wattage 1500W Minimum Safe Interval to Flammable Object 0.6m
Suitable Lamp JP100V1000WB/G-2 Minimum Throw Distance from Flammable Object 2.0m
JP100V1000WC/G-2 Lens MENISCUS HIVEX 200D120F S1
JP100V1500WB/G-2 Lamp Base G22
JP100V1500WC/G-2 Cable Length 1.5m
Maximum Ambient Temperature 40°C Plug C-30P
Maximum Surface Temperature 295°C Body Material Aluminum
Body Weight 5.9kg Color Black
Tilt Angle/Suspended Use UP45° DN90° Color Frame 245mm×245mm

FQH2-805S2-1500
Voltage AC 100 V Tilt Angle/Stand Use UP90° DN40°
Wattage 1500W Minimum Safe Interval to Flammable Object 0.6m
Suitable Lamp JP100V1000WB/G-2 Minimum Throw Distance from Flammable Object 1.0m
JP100V1000WC/G-2 Lens MENISCUS HIVEX 200D120F S2
JP100V1500WB/G-2 Lamp Base G22
JP100V1500WC/G-2 Cable Length 1.5m
Maximum Ambient Temperature 40°C Plug C-30P
Maximum Surface Temperature 295°C Body Material Aluminum
Body Weight 5.9kg Color Black
Tilt Angle/Suspended Use UP45° DN90° Color Frame 245mm×245mm

FQH2-106S1-2000
Voltage AC 100 V Minimum Safe Interval to Flammable Object 0.6m
Wattage 2000W Minimum Throw Distance from Flammable Object 2.5m
Suitable Lamp JP100V2000WB/G-2 Lens MENISCUS HIVEX 250D150F S1
JP100V2000WC/G-2 Lamp Base G22
Maximum Ambient Temperature 40°C Cable Length1.5m
Maximum Surface Temperature 295°C Plug C-30P
Body Weight 7.8kg Body Material Aluminum
Tilt Angle/Suspended Use UP45° DN90° Color Black
Tilt Angle/Stand Use UP90° DN45° Color Frame 295mm×295mm

32
