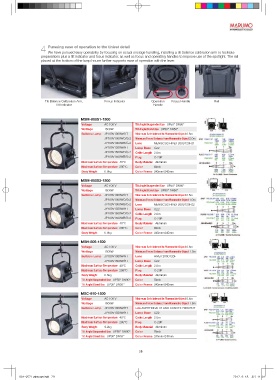

Page 31 - 루스케이프 방송무대 지명원

4 Pursuing ease of operation to the tiniest detail
We have pursued easy operability by focusing on actual onstage handling, installing a tilt balance calibration arm to facilitate
preparations plus a tilt indicator and focus indicator, as well as focus and operating handles to improve use of the spotlight. The rail
placed at the bottom of the lamp house further supports ease of operation with the lever.

Tilt Balance Calibration Arm, Focus Indicator Operation Focus Handle Rail
Tilt Indicator Handle

MSM-805S1-1500
Voltage AC 100 V Tilt Angle/Suspended Use UP50° DN90°
Wattage 1500W Tilt Angle/Stand Use UP90° DN50°
Suitable Lamp JP100V1000W/HT Minimum Safe Interval to Flammable Object 0.6m
JP100V1000WC/G-2 Minimum Throw Distance from Flammable Object 2.0m
JP100V1000WB/G-2 Lens MENISCUS HIVEX 200D120FS1
JP100V1500W/HT Lamp Base G22
JP100V1500WC/G-2 Cable Length 2.0m
JP100V1500WB/G-2 Plug C-20P
Maximum Surface Temperature 40°C Body Material Aluminum
Maximum Surface Temperature 295°C Color Black
Body Weight 6.6kg Color Frame 245mm×245mm

MSM-805S2-1500
Voltage AC 100 V Tilt Angle/Suspended Use UP50° DN90°
Wattage 1500W Tilt Angle/Stand Use UP90° DN50°
Suitable Lamp JP100V1000W/HT Minimum Safe Interval to Flammable Object 0.6m
JP100V1000WC/G-2 Minimum Throw Distance from Flammable Object 1.0m
JP100V1000WB/G-2 Lens MENISCUS HIVEX 200D120FS2
JP100V1500W/HT Lamp Base G22
JP100V1500WC/G-2 Cable Length 2.0m
JP100V1500WB/G-2 Plug C-20P
Maximum Surface Temperature 40°C Body Material Aluminum
Maximum Surface Temperature 295°C Color Black
Body Weight 6.6kg Color Frame 245mm×245mm
MSH-805-1500
Voltage AC 100 V Minimum Safe Interval to Flammable Object 0.6m
Wattage 1500W Minimum Throw Distance from Flammable Object 1.5m
Suitable Lamp JP100V1000W/HT Lens HIVEX 200D120F
JP100V1500W/HT Lamp Base G22
Maximum Surface Temperature 40°C Cable Length 2.0m
Maximum Surface Temperature 295°C Plug C-20P
Body Weight 6.6kg Body Material Aluminum
Tilt Angle/Suspended Use UP50° DN90° Color Black
Tilt Angle/Stand Use UP90° DN50° Color Frame 245mm×245mm

MSC-810-1500
Voltage AC 100 V Minimum Safe Interval to Flammable Object 0.6m
Wattage 1500W Minimum Throw Distance from Flammable Object 1.5m
Suitable Lamp JP100V1000W/HT Lens ASPHERICAL PLANO-CONVEX 200D254F
JP100V1500W/HT Lamp Base G22
Maximum Surface Temperature 40°C Cable Length 2.0m
Maximum Surface Temperature 295°C Plug C-20P
Body Weight 9.2kg Body Material Aluminum
Tilt Angle/Suspended Use UP55° DN90° Color Black
Tilt Angle/Stand Use UP90° DN55° Color Frame 245mm×245mm

29
