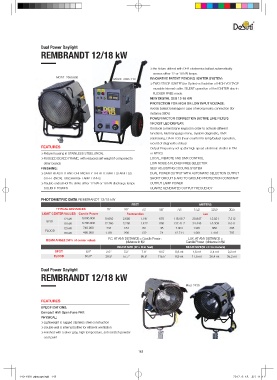

Dual Power Daylight
REMBRANDT 12/18 kW

≫ the fixture utilized with DEB electronics ballast automatically
senses either 12 or 18 kW lamps.
MODE 2560.600 MODE 2565.110 INNOVATIVE PATENT PENDING IGNITER SYSTEM:
≫ TWO STAGE IGNITER,for Optimized Isulation of HIGH VOLTAGE
movable internal cable. SILENT operation of the IGNITER also in
FLICKER FREE mode.
NEW DIGITAL DEB 12-18 KW
PROTECTION FOR HIGH OR LOW INPUT VOLTAGE:
Avoids ballast breakage in case of wrong mains connection (for
instance 380V)
POWER FACTOR CORRECTION (ACTIVE LINE FILTER)
16 DIGIT LED DISPLAY:
It include a membrane keypad in order to activate different
functions, Multi-language menu, System diagnostic, DMX
addressing, DATA LOG (hour counter for lamp/ballast operation,
record of diagnostic status)
FEATURES Output Frequency set up (for high speed electronic shutter in PAL
≫Fixture housing in STAINLESS STEEL (INOX). or NTSC)
≫ RUGGED BOXED FRAME, with reduced self weight if compared to LOCAL, REMOTE AND DMX CONTROL
other brands LOW NOISE & FLICKER FREE SELECTOR
FINISHING: SELF ADJUSTING COOLING SYSTEM
≫ SAND BLASTED AND CHEMICALLY TREATED MATT STAINLESS DUAL POWER OUTPUT WITH AUTOMATIC SELECTION OUTPUT
STEEL (INOX). DISCHARGE LAMP TYPES: SHORT CIRCUIT & ARC TO GROUND PROTECTION CONSTANT
≫ Double ended Hot Re-strike either 12 kW or 18 kW discharge lamps OUTPUT LAMP POWER
DOUBLE POWER QUARTZ GENERATED OUTPUT FREQUENCY

PHOTOMETRIC DATA REMBRANDT 12/18 kW
FEET METERS
TYPICAL DISTANCES 25’ 50’ 75’ 80’ 7,6 15,2 22,9 30,5
LIGHT CENTER VALUES Candle Power Footcandles Lux
12 kW 8.000.000 10.692 2.680 1.191 670 115.08 7 28.847 12.821 7.212
SPOT
18 kW 6.700.000 12.766 3.200 1.422 800 137.41 7 34.445 15.309 8.611
12 kW 740.000 734 184 82 46 7.901 1.981 880 495
FLOOD
18 kW 460.000 1.181 296 132 74 12.711 1.981 1.416 797
F.C. AT ANY DISTANCE = Candle Power : LUX. AT ANY DISTANCE =
BEAM ANGLE (50% of center value) (distance in ft)2 Candle Power : (distance in ft)2
BEAM SIZE (W x H in feet) BEAM SIZE(W x H in meters)
SPOT 6,0° 2.6’’ 5.2’ 7.9’ 10.5’ 0,8 mt 1,6 mt 2,4 mt 3,2 mt
FLOOD 60,0° 28.9’ 57.7’ 86.6’ 115.5’ 8,8 mt 17,6 mt 26,4 mt 35,2 mt

Dual Power Daylight
REMBRANDT 12/18 kW

Mod. 2430

FEATURES
SPECIFICATIONS:
Compact HMI Open Face PAR
PHYSICAL:
≫ Lightweight & rugged stainless steel construction
≫ Double wall & internal baffles for efficient ventilation
≫ Finished with a silver gray, high temperature, anti-scratch powder
coat paint

143
