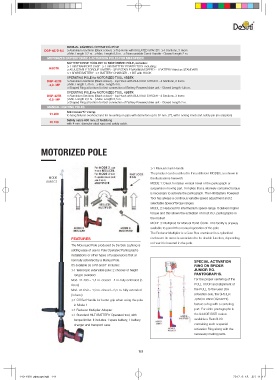

MANUAL LIGHTING OPERATING POLE
DGP-427B-6,5 ≫Aluminium Sections (Black colour) ≫Top Hook with ISULATED SPACER ≫4 Sections, 3 risers
≫Min. Length 2,2 m. ≫Max. Length 6,5 m. ≫Dismountable Crank Handle - Closed Length 2 m.
MOTORIZED BATTERY DRIVE & ACTIVATION POLES FOR MINI SPIDER
BATTERY DRIVE TOOL KIT for MOTORISED POLE, includes:
≫1 Hilti TRANPORT CASE ≫1 Hilti BATTERY POWER TOOL including:
HBDTK ≫ADJUSTABLE TORQUE LIMITER - SELECTABLE MAXIMUM SPEED - 1 BATTERY fitted as STANDARD
≫1 SPARE BATTERY ≫1 BATTERY CHARGER - 1 BIT with HOOK
OPERATING POLE for MOTORIZED TOOL HBDTK
DGP-427B ≫Aluminium Sections (Black colour) - Top Hook with ISULATED SPACER - 4 Sections, 3 risers
-4,0- MP ≫Min. Length 1,45 m. ≫Max. Length 4 m.
≫Shaped Ring at bottom for fast connection of Battery Powered drive unit - Closed Length 1,45 m.
OPERATING POLE for MOTORIZED TOOL HBDTK
DGP-427B ≫Aluminium Sections (Black colour) - Top Hook with ISULATED SPACER - 4 Sections, 3 risers
-6,5- MP ≫Min. Length 2,2 m. ≫Max. Length 6,5 m.
≫Shaped Ring at bottom for fast connection of Battery Powered drive unit - Closed Length 2 m.
MANUAL LIGHTING POLES
Solid brass "C" clamp
91.200 to hang fixtures overhead and for mounting on pipe with diameters up to 52 mm. (2"), with Locking Knob and safety pin (no adapters)
Safety cable 800 mm. (3 feet) long
20.100 with 4 mm. diameter steel rope and safety catch.

MOTORIZED POLE

≫1 Manual crank Handle
The product can be utilized in three different MODES, as shown in
MODE the illustrations herewith:
1DIRECT MODE 1: Direct for faster vertical travel of the pantograph or
suspension moving part. It implies that a relatively contained torque
is necessary to activate the pantograph. The Hilti Battery Powered
Tool has always a continous variable speed adjustment and 2
selectable Speed/Torque ranges.
MODE 2: Reduced for intermedium speed-range. It delivers higher
torque and this allows the activation of most P.O. pantographs in
the market
MODE 3: Multiplied for Manual Hand Crank. This facility is anyway
available to permit the manual operation of the pole
The Reducer Multiplier is a Gear Box contained in a cylindrical
enclosure: its name is associated to its double function, depending
FEATURES
on how it is inserted in the pole.
The Motorized Pole produced by De Sisti Lighting is
adding ease of use to Pole Operated Pantographs
installations or other types of Suspensions that ar
normally activated by a Manual Pole. SPECIAL ACTIVATION
It’s available as a Kit and it’ includes: RING ON SPIDER
≫ 1 telescopic extensible pole: 2 choices of height JUNIOR P.O.
ranges available: PANTOGRAPHS.
Mod. 41.400 = 1,4 m. closed – 4 m. fully extended (3 For the proper centering of the
risers) POLE HOOK and alignment of
Mod. 41.650 = 1,9 m. closed – 6,5 m. fully extended the POLE to the Gear Box
(3 risers) activation axis, the SPIDER
≫ 1 Off Set Handle for better grip when using the pole JUNIOR PANTOGRAPHS
in Mode 1 feature a ring with a centering
≫1 Reducer Multiplier Adapter part. For older pantographs in
≫ 1 Standard HILTI BATTERY Operated tool, with the field DE SISTI makes
torque limiter. It includes 1 spare battery, 1 battery available a Retrofit Kit
charger and transport case containing such a special
activation Ring along with the
necessary mating parts.

141
