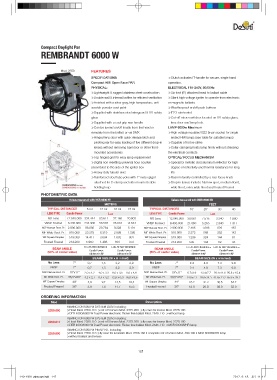

Compact Daylight Par
REMBRANDT 6000 W

Mod. 2350 FEATURES
SPECIFICATIONS: ≫Clutch activated T-handle for secure, single hand
Compact HMI Open Face PAR operation.
PHYSICAL: ELECTRICAL 115-240V, 50/60Hz
≫Lightweight & rugged stainless steel construction ≫Six foot (6’) attached head to ballast cable
≫Double wall & internal baffles for efficient ventilation ≫Silent high voltage igniter to operate from electronic
≫Finished with a silver gray, high temperature, anti- or magnetic ballasts
scratch powder coat paint ≫Weatherproof on/off push buttons
≫Supplied with stainless steel wireguard & UV safety ≫IP23 rain tested
glass ≫ Cut-off micro-switches located on UV safety glass,
≫Supplied with a cool grip rear handle lens door and lamp lock.
≫Can be turned on/off locally from the head or LAMP 6000w Maximum
remotely from the ballast or via DMX ≫ High voltage insulated G22 bi-pin socket for single
≫ Hinged lens door with quick release latch and ended HMI lamps (see table for suitable lamps)
pivoting ear for easy loading of five different drop-in ≫Capable of hot re-strike
lenses without removing barndoor or other front- ≫Collar clamping holds lamp firmly without stressing
mounted accessories the electrical contacts
≫Top hinged grid for easy lamp replacement OPTICAL/ FOCUS MECHANISM
≫Digital non-resetting universal hour counter ≫ Special bi-metallic clad aluminum reflector for high
assembled to the side of the igniter box degree of reflectivity and thermal resistance for long
≫Heavy duty tubular skid. life
≫ Reinforced steel tube yoke with 1” male spigot ≫Beam intensity controlled by a rear focus knob
attached for C-clamp and side mounted cable ≫ Drop-in lenses include: Narrow spot, medium flood,
holding loop wide flood, extra wide flood and frosted Fresnel
PHOTOMETRIC DATA
Values measured with MSR 6000 HR Values measured with MSR 6000 HR
METERS FEET
TYPICAL DISTANCES 6 mt 12 mt 18 mt 24 mt TYPICAL DISTANCES 10’ 20’ 30 40
LENS TYPE Candle Power Lux LENS TYPE Candle Power Lux
NO Lens 12.040.000 334.444 83.611 37.160 20.903 NO Lens 12.040.000 30.061 7.515 3.340 1.880
VNSP Frosted 8.435.000 234.306 58.576 26.034 14.644 VNSP Frosted 8.435.000 21.060 5.265 2.340 1.317
NSP Narrow Rect. Pr. 2.990.000 86.056 20.764 9.228 5.191 NSP Narrow Rect. Pr. 2.990.000 7.465 1.866 829 467
MF Wide Rect. Pr. 910.000 25.278 6.319 2.809 1.580 MF Wide Rect. Pr. 910.000 2.272 568 252 142
WF Square Dimples 519.000 14.417 3.604 1.602 901 WF Square Dimples 519.000 1.296 324 144 81
Frosted Fresnel 214.200 5.950 1.488 661 372 Frosted Fresnel 214.200 535 134 59 33
F.C. AT ANY DISTANCE = LUX. AT ANY DISTANCE = F.C. AT ANY DISTANCE = LUX. AT ANY DISTANCE =
BEAM ANGLE Candle Power : Candle Power : BEAM ANGLE Candle Power : Candle Power :
(50% of center value) (50% of center value)
(distance in ft)2 (distance in ft)2 (distance in ft)2 (distance in ft)2
BEAM SIZE (W x H in feet) BEAM SIZE (W x H in feet)
No Lens 7° 0,7 1,5 2,2 2,9 No Lens 7° 2.4 4.9 7.3 9.8
VNSP 7° 0,7 1,5 2,2 2,9 VNSP 7° 2.4 4.9 7.3 9.8
NSP Narrow Rect. Pr. 19°x11° 2,0 x 1,2 4,0 x 2,3 6,0 x 3,5 8,0 x 4,6 NSP Narrow Rect. Pr. 19°x11° 6.7x3.9 13.4x7.7 20.1x11.6 26.8 x 15.4
MF Wide Rect. Pr. 38,5°x20° 4,2 x 2,1 8,4 x 4,2 12,6 x 6,3 16,8 x 8,5 MF Wide Rect. Pr. 38,5°x20° 14.0x7.1 28.0x14.1 41.9x 21.2 55.9 x 28.2
WF Square Dimples 44° 4,8 9,7 14,5 19,4 WF Square Dimples 44° 16.2 32.3 48.5 64.7
Frosted Fresnel 36° 3,9 7,8 11,7 15,6 Frosted Fresnel 36° 13.0 26.0 39.0 52.0

ORDERING INFORMATION
Mod Description
REMINGTON 6000 W SYSTEM 230V, including:
2350.600 ≫Head Mod. 2350.110 ≫set of 5 lenses Mod. 2375.200 ≫fly case for lenses Mod. 2378.100
≫DEB 4000/6000 W Dual Power electronic Flicker free ballast Mod. 2545.110 ≫without lamp
REMINGTON 6000 W SYSTEM 230V, including:
2350.610 ≫Head Mod. 2350.110 ≫set of 5 lenses Mod. 2375.200 ≫fly case for lenses Mod. 2378.100
≫DEB 4000/6000 W Dual Power electronic Flicker free ballast Mod. 2545.110 ≫MSR 6000W/HR lamp
REMINGTON 6000 W "HEAD" KIT, including:
2350.690 ≫Head Mod. 2350.110 ≫fly case for luminaire Mod. 2358.180 • complete set of scrims Mod. 499.100 • MSR 6000W/HR lamp
≫without ballast and lenses

147
