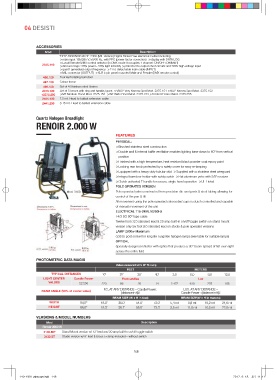

04 DESISTI

ACCESSORIES
Mod Description
"DEB" 4000/6000 W CE-230V (MIL Version) Digital Flicker Free electronic ballast including:
≫main input 185/265 V, 50/60 Hz, with PFC (power factor correction) ≫display with DATA LOG
≫Local/Remote/DMX control selector (In DMX mode it occupies 1 channel: ON/OFF+DIMMER)
2545.110 ≫dimmer range: 30% power= 50% light intensity ≫protected to output short circuits and 380V high voltage input
≫quartz generated output frequency ≫2 mt. detachable main cable (INPUT)
≫MIL connector (OUTPUT) ≫XLR 5 pin panel mounted Male and Female (DMX remote control)
496.100 Four leaf rotating barndoor
497.100 Colour frame
499.100 Set of 4 Stainless steel Scrims
2378.100 Set of 5 lenses with ring and handle,Types: ≫VNSP Very Narrow Spot Mod. 2375.151 ≫NSP Narrow Spot Mod. 2375.152
+2375.200 ≫MF Medium Flood Mod. 2375.153 ≫WF Wide Flood Mod. 2375.154 ≫Frosted Fresnel Mod. 2375.255.
2441.100 7,5 mt. Head to ballast extension cable
2441.200 S 15 mt. Head to ballast extension cable

Quartz Halogen Broadlight
RENOIR 2.000 W

FEATURES
PHYSICAL:
≫Brushed stainless steel construction
≫ Double wall & internal baffle ventilation enables lighting base down to 60° from vertical
position
≫Finished with a high temperature, heat resistant black powder coat epoxy paint
≫Locking rear knob protected by a safety cover for easy re-lamping
≫Equipped with a heavy duty tubular skid ≫Supplied with a stainless steel wireguard
≫Integral barndoor holder with safety catch ≫Flat aluminum yoke with 5/8” receiver
≫Clutch activated T-handle for secure, single hand operation ≫UL Listed
POLE OPERATED VERSION
Mod. 3160 Pole operated yoke constructed from precision die cast parts & steel tubing allowing for
control of the pan & tilt
All movement using the pole operated colorcoded cups is clutch controlled and capable
of manual movement of the unit
ELECTRICAL 115-240V, 50/60Hz
14/3 SO 90° type cable
Twelve foot (12’) standard lead & 20 amp built-in on/off toggle switch on stand mount
version only Six foot (6’) standard lead on studio & pole operated versions
LAMP 2000w Maximum
G38 bi-post socket for long life Tungsten halogen lamps (see table for suitable lamps)
OPTICAL
Specially designed reflector with optics that produce a 90° beam spread of flat even light
across the entire field

PHOTOMETRIC DATA MAGIS
Values measured with: CP 73 Lamp
FEET METERS
TYPICAL DISTANCES 10’ 20’ 30’ 40’ 3,0 6,0 9,0 12,0
LIGHT CENTER Candle Power Footcandles Lux
VALUES 22.250 223 56 25 14 2.472 618 275 155
F.C. AT ANY DISTANCE = Candle Power : LUX. AT ANY DISTANCE =
BEAM ANGLE (50% of center value) (distance in ft)2 Candle Power : (distance in ft)2
BEAM SIZE (W x H in feet) BEAM SIZE(W x H in meters)
WIDTH 84,0° 18.0’ 36.0’ 54.0’ 72.0’ 5,4 mt 0,8 mt 16,2 mt 21,6 mt
HEIGHT 85,0° 18.3’ 36.7’ 55.0’ 73.3’ 5,5 mt 11,0 mt 16,5 mt 22,0 mt

VERSIONS & MODEL NUMBERS
Mod Description
Renoir 2000 W
3130.MP Stand Mount version w/ 12’ lead and 20 amp built-in on/off toggle switch
3130.ST Studio version w/ 6’ lead & brass c-clamp included – without switch

148
