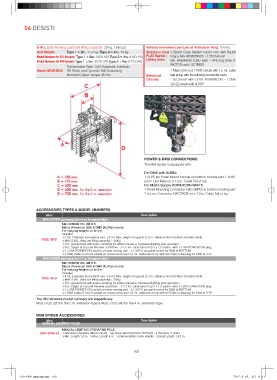

04 DESISTI

S.W.L Safe Working Load (net lifting capacity) 30 kg. / 66 Lbs. Vertical movement per turn of Activation Ring 19 mm.
Self Weight Type 1 = 2m. 11,5 kg. Type 2 = 4m. 14 kg. Stainless steel 2 Bands Cross Section 10x0.3 mm. with Round
Model Numbers for B.S. Versions Type 1 = 2m. 8120.120 Type 2 = 4m. 8120.140 FLAT Bands / Edges. Min. RESISTANCE = 1.550 N/mm2
Model Numbers for DIN Versions Type 1 = 2m. 8120.320 Type 2 = 4m. 8120.340 Lifting lines Min. BREAKING LOAD each = 474,3 kg SAFETY
Transmission Ratio 1:80 Automatic Interlock: FACTOR each> 22 TIMES
Winch GEAR BOX SD Static and Dynamic Self Sustaining 1 Mains 20A and 1 DMX circuits with 1,5 mt. cable
Nominal Output Torque 35 Nm Electrical tails at top with the following connection stds:
Circuits - 3x1,5mm2 with 1x20A POWERCON - 1 DMX
2x0,22+shield with XLR5P

POWER & DMX CONNECTIONS:
The Mini Spider is equipped with:
For DMX with XLR5p:
1 XLR5 pin Panel Mount Female on bottom moving part 1 XLR5
pin In Line Male on a 1,5m. Cable Tail at top
For Mains Supply POWERCON WHITE:
1 Panel Mounting Connector NAC3MPB on bottom moving part
1 In Line Connector NAC3FCB on a 1,5m. Cable Tail at top

ACCESSORIES TYPES & MODEL NUMBERS
Mod Description
MINI SPIDER pantograph for 4 m. hanging height
Mini SPIDER P.O. 2M B.S.
Mains (Powercon 20A) & DMX (XLR5p) circuits
For hanging heights up to 4 m.
Includes:
≫2 mt. Extension (net vertical run) ≫4 mt. Max. heigth of support (1,5 m. distance from the floor at bottom limit).
8120.120 D ≫MAX S.W.L. (Max net lifting capacity) = 30Kg.
≫P.O. special hook with lower centering for either manual or motorized lighting pole operation.
≫B.S. Spigot at Top and Receiver at Bottom. ≫1,5 mt. cable tail on top 3 x 1,5 sqmm. with 1 x 20A POWERCON plug.
≫1 x 20A POWERCON socket on lower moving part. ≫1 XLR 5 pin panel socket for DMX at BOTTOM
≫1 DMX cable of 2x0,22+shield on scissor arms and 1,5 mt. cable tail on top with XLR 5pin in-line plug for DMX at TOP
MINI SPIDER pantograph for 6 m. hanging height
Mini SPIDER P.O. 4M B.S.
Mains (Powercon 20A) & DMX (XLR5p) circuits
For hanging heights up to 6 m.
Includes:
≫4 mt. Extension (net vertical run) ≫6 mt. Max. heigth of support (1,5 m. distance from the floor at bottom limit).
8120.140 D ≫MAX S.W.L. (Max net lifting capacity) = 30Kg.
≫P.O. special hook with lower centering for either manual or motorized lighting pole operation.
≫B.S. Spigot at Top and Receiver at Bottom. ≫1,5 mt. cable tail on top 3 x 1,5 sqmm. with 1 x 20A POWERCON plug.
≫1 x 20A POWERCON socket on lower moving part. ≫1 XLR 5 pin panel socket for DMX at BOTTOM
≫1 DMX cable of 2x0,22+shield on scissor arms and 1,5 mt. cable tail on top with XLR 5pin in-line plug for DMX at TOP
The DIN Versions model numbers are respectively:
Mod. 8120.320 for the 2 m. extension type & Mod. 8120.340 for the 4 m. extension type

MINI SPIDER ACCESSORIES
Mod Description
MANUAL LIGHTING POLES
MANUAL LIGHTING OPERATING POLE
DGP-427B-4,0 ≫Aluminium Sections (Black colour) - Top Hook with ISULATED SPACER - 4 Sections, 3 risers
≫Min. Length 1,6 m. ≫Max. Length 4 m. ≫Dismountable Crank Handle - Closed Length 1,42 m.
