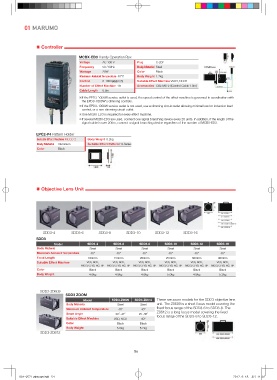

01 MARUMO

⁕ Controller
MCBX-ED3 Handy Operation Box
Voltage AC 100 V Plug C-20P
Frequency 50 / 60Hz Body Material Steel
Wattage 20W Color Black
Maximum Ambient Temperature 40°C Body Weight 1.7kg
Control 0-100V(調光出力) Suitable Effect Machine VSD3, NCD3
Number of Effect Machine 1台 Accessories CBL-MS-L1(Control Cable 1.0m)
Cable Length 0.8m
※If the EPD3-1000W service outlet is used, the speed control of the effect machine is governed in coordination with

the EPD3-1000W's dimming controls.
※ If the EPD3-1000W service outlet is not used, use a dimming circuit outlet allowing minimal load or induction load
control, or a non-dimming circuit outlet.
※ One MCBX-ED3 is required for every effect machine.
※ If several MCBX-ED3 are used, connect one signal branching device every 20 units. In addition, if the length of the
signal cable is over 200m, connect a signal branching device regardless of the number of MCBX-ED3.

EPC2-P4 Pattern Holder
Suitable Effect Machine MCCD-2 Body Weight 0.2kg
Body Material Aluminum Suitable Effect Pattern P4 Series
Color Black

⁕ Objective Lens Unit

SDD3-4 SDD3-6 SDD3-8 SDD3-10 SDD3-12 SDD3-16

SDD3
Model SDD3-4 SDD3-6 SDD3-8 SDD3-10 SDD3-12 SDD3-16
Body Materia Steel Steel Steel Steel Steel Steel
Maximum Ambient Temperature 40° 40° 40° 40° 40° 40°
Focal Length 100mm 150mm 200mm 250mm 300mm 400mm
Suitable Effect Machine VSD, NCD, VSD, NCD, VSD, NCD, VSD, NCD, VSD, NCD, VSD, NCD,
MCCD-2 VS, NC, RP MCCD-2 VS, NC, RP MCCD-2 VS, NC, RP MCCD-2 VS, NC, RP MCCD-2 VS, NC, RP MCCD-2 VS, NC, RP
Color Black Black Black Black Black Black
Body Weight 4.6kg 4.8kg 4.6kg 5.0kg 4.8kg 5.2kg

SDD3-Z0609
SDD3 ZOOM
Model SDD3-Z0609 SDD3-Z0812 These are zoom models for the SDD3 objective lens
Body Materia Steel Steel unit. The Z0609 is a short focus model covering the
Maximum Ambient Temperature 40° 40° fixed focus range of the SDD3-6 to SDD3-8. The
Beam Angle 32 ̊~47 ̊ 25~36 ̊ Z0812 is a long focus model covering the fixed
focus range of the SDD3-8 to SDD3-12.
Suitable Effect Machine VSD, NCD 40°
Color Black Black
Body Weight 5.0kg 5.2kg
SDD3-Z0812
