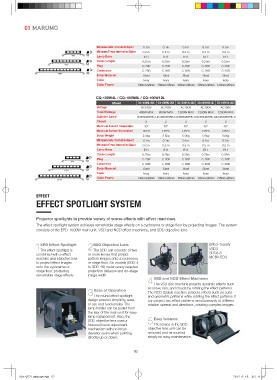

01 MARUMO

Minimum Safe Interval to Object 0.1m 0.1m 0.1m 0.1m 0.1m
Minimum Throw Interval to Object 0.2 m 0.2 m 0.2 m 0.2 m 0.2 m
Lamp Base E11 E11 E11 E11 E11
Cable Length 0.25m 0.25m 0.25m 0.25m 0.25m
Plug C-20P C-20P C-20P C-20P C-20P
Connector C-20B C-20B C-20B C-20B C-20B
Body Material Steel Steel Steel Steel Steel
Color Ivory Ivory Ivory Ivory Ivory
Color Frame 136mm×98mm 136mm×98mm 136mm×98mm 136mm×98mm 136mm×98mm

CQ-100W4L / CQ-100W8L / CQ-100W12L
Model CQ-100W4L-2CX CQ-100W8L-2CX CQ-100W12L-2CX CQ-100W12L-3C CQ-100W12L-3CD
Voltage AC100V AC100V AC100V AC100V AC100V
Total Wattage 400W MAX 800W MAX 1200W MAX 1200W MAX 1200W MAX
Suitable Lamp JD100V85W·NP/E×4 JD100V85W·NP/E×8 JD100V85W·NP/E×12JD100V85W·NP/E×12JD100V85W·NP/E×12
Circuit 2 2 2 3 3
Maximum Ambient Temperature 40° 40° 40° 40° 40°
Maximum Surface Temperature 145°C 145°C 145°C 145°C 145°C
Body Weight 2.3kg 3.5kg 5.0kg 5.6kg 5.6kg
Minimum Safe Interval to Object 0.1m 0.1m 0.1m 0.1m 0.1m
Minimum Throw Interval to Object 0.2 m 0.2 m 0.2 m 0.2 m 0.2 m
Lamp Base E11 E11 E11 E11 E11
Cable Length 0.25m 0.25m 0.25m 0.25m 0.25m
Plug C-20P C-20P C-20P C-20P C-20P
Connector C-20B C-20B C-20B C-20B C-20B
Body Material Steel Steel Steel Steel Steel
Color Ivory Ivory Ivory Ivory Ivory
Color Frame 136mm×98mm 136mm×98mm 136mm×98mm 136mm×98mm 136mm×98mm

EFFECT
EFFECT SPOTLIGHT SYSTEM

Projector spotlights to provide variety of scene effects with effect machines.
The effect spotlight system achieves remarkable stage effects on a cyclorama or stage floor by projecting images. The system
consists of the EPD-1000W main unit, VSD and NCD effect machines, and SDD objective lens.

EPD Effect Spotlight
SDD Objective Lens
1 2 EPD3-1000W
VSD3
The SDD unit consists of two
The effect spotlight is
combined with a effect or more lenses that project SDD3-8
machine and objective lens pattern images onto a cyclorama MCBX-ED3
to project effect images or stage floor. Six models (SDD-4
onto the cyclorama or to SDD-16) match every required
stage floor, producing projection distance and on-stage
remarkable stage effects. image width.
4 VSD and NCD Effect Machines
The VSD disc machine projects dynamic effects such
as snow, rain, and clouds by rotating the effect patterns.
3 The NCD double machine projects effects such as curls
Ease of Operation
The round effect spotlight
and geometric patterns while rotating the effect patterns. It
design ensures simplicity, ease can project two effect patterns simultaneously at different
of use and functionality. The rotation speeds and directions, creating complex images.
lamp holder can be pulled from
the rear of the main unit for easy
lamp replacement. Also, the
SDD objective lens uses a 5 Easy tenance
frictional focus adjustment The lenses in the SDD
mechanism with no focus objective lens unit can be
deviation even when pointing removed and remounted
directly up or down. simply for easy maintenance.
