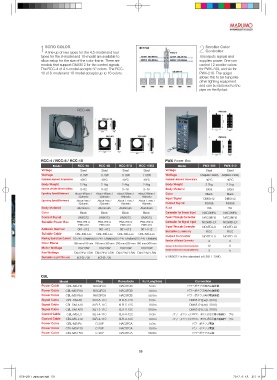

SCRO COLOR
1 2 Controller
Scroller Color
A line-up of two types for the 4.5-model and four
types for the 8-model and 10-model are available to This inputs signals and
allow setup for the size of the color frame. There are supplies power. One can
models that support DMX512 for the control signals. control 12 scroller colors
The RCC-4 of 4.5-model accepts 32 colors. The RCC- for PWX-209, and six for
10 of 8-model and 10-model accepts up to 16 colors. PWX-210. The spigot
allows this to be hung like
other lighting equipment
and can be fastened to the
pipe on the flyduct.

RCC-4A

RCC-4 / RCC-8 / RCC-10 PWX Power Box
Model RCC-4A RCC-4B RCC-8FD RCC-10BD Model PWX-209 PWX-210
Voltage Steel Steel Steel Steel Voltage Steel Steel
Wattage 11.5W 11.5W 11.5W 11.5W Wattage 10W(MAX 480W) 5W(MAX 240W)
Maximum Ambient Temperature 40°C 40°C 40°C 40°C Maximum Ambient Temperature 40°C 40°C
Body Weight 2.2kg 2.1kg 2.4kg 2.4kg Body Weight 3.7kg 2.1kg
Number of Color Sheets Setting 3~32 3~32 3~16 3~16 Body Material Steel Steel
Operating Speed(Minimum) About 480sec / About 480sec / About 300sec / About 300sec / Color Black Black
32sheets 32sheets 16sheets 16sheets Input Signal DMX512 DMX512
Operating Speed(Maximum) About 2sec / About 2sec / About 1.7sec / About 1.7sec /
32sheets 32sheets 16sheets 16sheets Output Signal RS485 RS485
Body Material Aluminum Aluminum Aluminum Aluminum Fuse 10A 5A
Color Black Black Black Black Connector for Power Input NAC3MPA NAC3MPA
Control Signal DMX512 DMX512 DMX512 DMX512 Power Through Connector NAC3MPB NAC3MPB
Suitable Power Box PWX-209 or PWX-209 or PWX-209 or PWX-209 or Connector for Signal Input NC5MD-LX NC5MD-LX
PWX-210 PWX-210 PWX-210 PWX-210 Signal Through Connector NC5FD-LX NC5FD-LX
Address Number 001~512 001~512 001~512 001~512 RCC RCC
Suitable Cable CBL-MS-Lxx CBL-MS-Lxx CBL-MS-Lxx CBL-MS-Lxx Suitable Luminairy
Output Connector NC4FD-LX NC4FD-LX
Moving Operation Current DC-24V 1.8A(MAX) DC-24V 1.8A(MAX) DC-24V 1.8A(MAX) DC-24V 1.8A(MAX)
Number of Output Connector 4 2
Color Flame 158 mm×158 mm 150 mm×150 mm 250 mm×250 mm 300 mm×300 mm 12 6
Motor Wattage 18V/10W 18V/10W 18V/10W 18V/10W Number of Maximum Circuit Connection 3 5
Number of Maximum Cascade Connection
Fan Wattage FAN 24V/1.5W FAN 24V/1.5W FAN 24V/1.5W FAN 24V/1.5W

Suitable Light Souce ECR2-750 ECR2-750 ※DMX512 is the standard of USITT 1990.

CBL
Model Plug Receptacle Full Length(m) Connection
Power Cable CBL-MS-R5 NAC3FCA NAC3FCB 5.0m パワーボックス間の電源接続
Power Cable CBL-MS-R10 NAC3FCA NAC3FCB 10.0m パワーボックス間の電源接続
Power Cable CBL-MS-R50 NAC3FCA NAC3FCB 50.0m パワーボックス間の電源接続
Signal Cable CBL-DM-A5 XLR-5-11C XLR-5-12C 5.0m DMX512 信号(L-3010)
Signal Cable CBL-DM-A10 XLR-5-11C XLR-5-12C 10.0m DMX512 信号(L-3010)
Signal Cable CBL-DM-A50 XLR-5-11C XLR-5-12C 50.0m DMX512 信号(L-3010)
Control Cable CBL-MS-L5 XLR-4-11C XLR-4-12C 5.0m パワーボックスとRCC、またはRCC間の制御ケーブル
Control Cable CBL-MS-L10 XLR-4-11C XLR-4-12C 10.0m パワーボックスとRCC、またはRCC間の制御ケーブル
Power Cable CBL-MS-P5 C-20P NAC3FCA 5.0m パワーボックス電源
Power Cable CBL-MS-P10 C-20P NAC3FCA 10.0m パワーボックス電源
Power Cable CBL-MS-P50 C-20P NAC3FCA 50.0m パワーボックス電源
