11 KUPO

400A PowerFit Rubber Cubic Power Distro Box
Part Number Description
PDB-C1303BN Brown
PDB-C1303BK Black
PDB-C1303GY Gray
PDB-C1303B Blue
PDB-C1303G Green

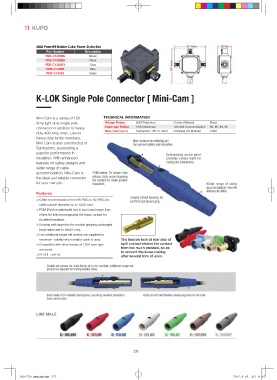

K-LOK Single Pole Connector [ Mini-Cam ]

Mini-Cam is a series of 150 TECHNICAL INFORMATION
Amp light duty single pole Voltage Rating 600V Maximum Contact Material Brass
connector in addition to heavy Amperage Rating 150A Maximum Terminal Accommodation #8, #6, #4, #2
duty 400 Amp ones. Like its Base Compound Santoprene 105 °C rated Retaining Pin Material POM
heavy duty family members,
Mini-Cam is also constructed of
Santoprene, possessing a
superior performance in
insulation. With enhanced
features on safety designs and
wider range of cable
accommodation, Mini-Cam is
the ideal and reliable connector
for your own job.

Features
≫ Cable accommodation from #8 AWG to #2 AWG (for
cable outside diameter up to 13.60 mm).
≫ POM (Polyformaldehyde) ring is two times longer than
others for fully encompassing the brass contact for
excellent insulation.
≫ Housing with large ribs for comfort gripping; prolonged
body helps user to hold it rmly.
≫ Two additional longer set screws are supplied for
maximum exibility when smaller cable is used. The tension hole at rear side of
≫ Compatible with other brands of 150A cam-type split contact retains the contact
connector. from too much pressed, so as
≫UL/cUL certi ed. to prevent the loose mating
after several time of uses.

LINE MALE

272
