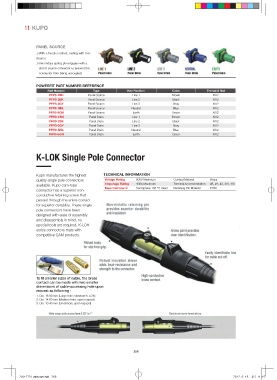

11 KUPO

PANEL SOURCE
≫With a female contact, mating with Line
Source.
≫ Secondary spring pin engages with a
slot of source connector to prevent the
connector from being uncoupled.

POWERFIT PART NUMBER REFERENCE
Part Number Type Key Position Color Thread & Nut
PFPS-1BN Panel Source Line 1 Brown M12
PFPS-2BK Panel Source Line 2 Black M12
PFPS-3GY Panel Source Line 3 Gray M12
PFPS-NBL Panel Source Neutral Blue M12
PFPS-EGN Panel Source Earth Green M12
PFPD-1BN Panel Drain Line 1 Brown M12
PFPD-2BK Panel Drain Line 2 Black M12
PFPD-3GY Panel Drain Line 3 Gray M12
PFPD-NBL Panel Drain Neutral Blue M12
PFPD-EGN Panel Drain Earth Green M12

K-LOK Single Pole Connector

Kupo manufactures the highest TECHNICAL INFORMATION
quality single pole connectors Voltage Rating 600V Maximum Contact Material Brass
available. Kupo cam-type Amperage Rating 400A Maximum Terminal Accommodation #6, #4, #2, 2/0, 4/0
connector has a superior non- Base Compound Santoprene 105 °C rated Retaining Pin Material POM
conductive retaining screw that
passed through the entire contact
for superior durability. These single
pole connectors have been
designed with ease of assembly
and disassembly in mind, no
special tools are required. K-LOK
series connectors mate with
competitive CAM products.

To fit smaller sizes of cable, the brass
contact can be made with two smaller
dimensions of cable-accessing hole upon
request as following :
1. Dia. 16.90 mm (Large hole; standard K-LOK)
2. Dia. 14.60 mm (Medium hole; upon request)
3. Dia. 10.40 mm (Small hole; upon request)

268
