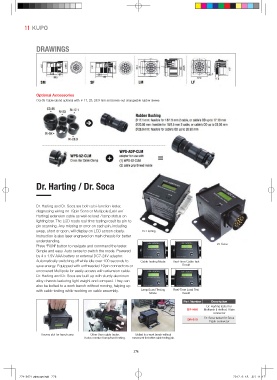

11 KUPO

DRAWINGS

Optional Accessories
CG-35 Cable Gland optional with Ø 17, 23, 28.9 mm and break-out changeable rubber sleeve.

Dr. Harting / Dr. Soca

Dr. Harting and Dr. Soca are both a bi-function tester,
diagnosing wiring on 19pin Soca or Multipole (Letri ex/
Harting) extension cable as well as load / lamp status on
lighting bar. The LCD reads real-time testing result by pin-to-
pin scanning. Any missing or error on each pin, including
swap, short or open, will display on LCD screen clearly. Dr. Harting
Instruction is also laser engraved on main chassis for better
understanding.
Press “RUN” button to navigate and command the tester. Dr. Soca
Simple and easy. Auto sense to switch the mode. Powered
by 4 x 1.5V AAA battery or external DC7-24V adaptor.
Automatically switching off while idle over 100 seconds to Cable Testing Mode Real-Time Cable Test
save energy. Equipped with unthreaded 19pin connectors or Result
uncovered Multipole for easily access with extension cable.
Dr. Harting and Dr. Soca are built up with sturdy aluminum
alloy chassis featuring light weight and compact. They can
also be bolted to a work bench without moving, helping up
with cable testing while working on cable assembly. Lamp/Load Testing Real-Time Load Test
Mode Result
Part Number Description
Dr. Harting tester for
DR-H16 Multipole (Letriflex) 16pin
connector
Dr. Soca tester for Soca
DR-S19 19pin connector

Roomy slot for hand-carry. Other than cable tester, Bolted to a work bench without
it also conduct lamp/load testing. movement for better cable testing job.

276
