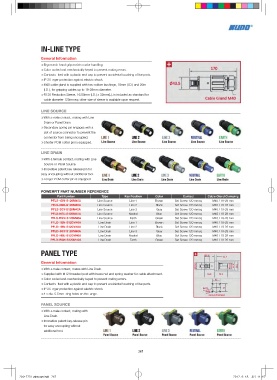

IN-LINE TYPE

General Information
≫ Ergonomic hand grip assists easier handling.
≫Color coded and mechanically keyed to prevent mating errors.
≫Contacts tted with a plastic end cap to prevent accidental touching of live parts.
≫IP 2X nger protection against electric shock.
≫ M40 cable gland is supplied with two rubber bushings, 18mm (I.D.) and 26m
(I.D.), for gripping cables up to 19-28mm diameter.
≫ R120 Reduction Sleeve, 16.50mm (I.D.) x 32mm(L), is included as standard for
cable diameter 120mmsq; other size of sleeve is available upon request.

LINE SOURCE
≫ With a male contact, mating with Line
Drain or Panel Drain.
≫ Secondary spring pin engages with a
slot of source connector to prevent the
connector from being uncoupled.
≫Shorter POM cotter pin is equipped.

LINE DRAIN
≫ With a female contact, mating with Line
Source or Panel Source.
≫Innovative patent key-release pin for
easy uncoupling without additional tool.
≫Longer POM cotter pin is equipped

POWERFIT PART NUMBER REFERENCE
Part Number Type Key Position Color Contact Cable Gland Clamping
PFLS-1BN-S120M40A Line Source Line 1 Brown Set Screw 120 mmsq M40 / 19-28 mm
PFLS-2BK-S120M40A Line Source Line 2 Black Set Screw 120 mmsq M40 / 19-28 mm
PFLS-3GY-S120M40A Line Source Line 3 Gray Set Screw 120 mmsq M40 / 19-28 mm
PFLS-NBL-S120M40A Line Source Neutral Blue Set Screw 120 mmsq M40 / 19-28 mm
PFLS-EGN-S120M40A Line Source Earth Green Set Screw 120 mmsq M40 / 19-28 mm
PFLD-1BN-S120M40A Line Drain Line 1 Brown Set Screw 120 mmsq M40 / 19-28 mm
PFLD-1BN-S120M40A Line Drain Line 2 Black Set Screw 120 mmsq M40 / 19-28 mm
PFLD-3GY-S120M40A Line Drain Line 3 Gray Set Screw 120 mmsq M40 / 19-28 mm
PFLD-NBL-S120M40A Line Drain Neutral Blue Set Screw 120 mmsq M40 / 19-28 mm
PFLD-EGN-S120M40A Line Drain Earth Green Set Screw 120 mmsq M40 / 19-28 mm

PANEL TYPE

General Information
≫ With a male contact, mates with Line Drain.
≫Supplied with M12 threaded post with brass nut and spring washer for cable attachment.
≫Color coded and mechanically keyed to prevent mating errors.
≫Contacts tted with a plastic end cap to prevent accidental touching of live parts.
≫IP 2X nger protection against electric shock.
≫4 x dia. 5.5mm xing holes on the ange.

PANEL SOURCE
≫ With a male contact, mating with
Line Drain.
≫ Innovative patent key-release pin
for easy uncoupling without
additional tool.
