LINE FEMALE

RECEPTACLE
MALE-THREAD
STUD TYPE

RECEPTACLE
FEMALE-THREAD
STUD TYPE

DRAWINGS

19-Pin

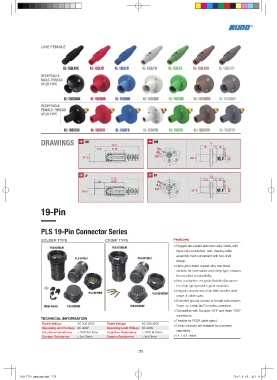

PLS 19-Pin Connector Series

SOLDER TYPE CRIMP TYPE Features
≫ Rugged die-casted aluminum alloy shells, with
black non-conductive nish, making cable
assembly most convenient with two-shell
design.
≫ Hard gold-plated copper alloy machined
contact, for both solder and crimp type, ensures
the excellent conductibility.
≫ Non-conductive rst grade Bakelite (Neoprene
for crimp type) provides great insulation.
≫ Integral-compressed strain relief handles wide
range of cable sizes.
≫ Extended ground contact at female side ensures
“mate rst, break last” for safety operation.
≫ Compatible with Socapex “419” and Veam “VSC”
connectors.
TECHNICAL INFORMATION ≫Feasible for PG29 cable gland.
Rated Voltage AC 20A 250V Rated Voltage AC 20A 250V ≫ Crimp contacts are available for purchase
Operating Limit Voltage AC 400V Operating Limit Voltage AC 400V separately.
Insulation Resistance > 2000 M Ohms Insulation Resistance > 2000 M Ohms
Contact Resistance < 3m Ohms Contact Resistance < 3m Ohms ≫UL / cUL listed.

273
