10 PATHWAY

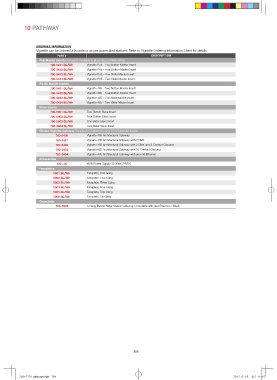

ORDERING INFORMATION
Vignette can be ordered à la carte or as pre-assembled stations. Refer to Vignette Ordering Information Sheet for details
PART# DESCRIPTION
PoE Master Inserts All Inserts Available in Black (BL) or White (WH)
700-5411 BL/WH Vignette PoE - Two Button Master Insert
700-5412 BL/WH Vignette PoE - Four Button Master Insert
700-5413 BL/WH Vignette PoE - One Slider Master Insert
700-5414 BL/WH Vignette PoE - Two Slider Master Insert
RS485 Master Inserts
700-5431 BL/WH Vignette 485 - Two Button Master Insert
700-5432 BL/WH Vignette 485 - Four Button Master Insert
700-5433 BL/WH Vignette 485 - One Slider Master Insert
700-5434 BL/WH Vignette 485 - Two Slider Master Insert
Slave Inserts
700-5901 BL/WH Two Button Slave Insert
700-5902 BL/WH Four Button Slave Insert
700-5903 BL/WH One Slider Slave Insert
700-5904 BL/WH Two Slider Slave Insert
Choreo Vignette Gateway Required on networks using RS485 Master Inserts
700-5490 Vignette 485 Architectural Gateway
700-5491 Vignette 485 Architectural Gateway with 2 DMX
700-5492 Vignette 485 Architectural Gateway with 2 DMX and 8 Contact Closures
700-5493 Vignette 485 Architectural Gateway with 16 Contact Closures
700-5494 Vignette 485 Architectural Gateway with second Ethernet
Accessories
1001-30 eDIN Power Supply 30 Watt, 24VDC
Faceplates
5001 BL/WH Faceplate, One Gang
5002 BL/WH Faceplate, Two Gang
5003 BL/WH Faceplate, Three Gang
5004 BL/WH Faceplate, Four Gang
5005 BL/WH Faceplate, Five Gang
5006 BL/WH Faceplate, Six Gang
Consolette
700-7905 3-Gang Button Slider Station table-top Consolette with rear Ethercon - Black
