11 KUPO

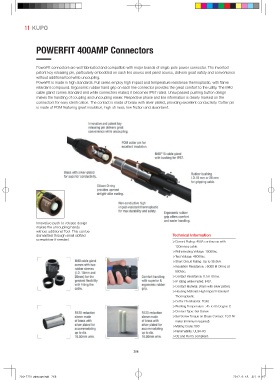

POWERFIT 400AMP Connectors

PowerFit connectors are well fabricated and compatible with major brands of single-pole power connector. The invented
patent key releasing pin, particularly embedded on each line source and panel source, delivers great safety and convenience
without additional tool while uncoupling.
PowerFit is made in high standards. Full series employ high impact and temperature resistance thermoplastic, with flame
retardant compound. Ergonomic rubber hand grip on each line connector provides the great comfort to the utility. The M40
cable gland comes standard and while connectors mated, it becomes IP67 rated. Unsurpassed pushing button design
makes the handling of coupling and uncoupling easier. Respective phase and line information is clearly marked on the
connectors for easy identi cation. The contact is made of brass with silver plated, providing excellent conductivity. Cotter pin
is made of POM featuring great insulation, high sti ness, low friction and absorbent.

Innovative push-to-release design
makes the uncoupling handy
without additional Tool. This can be
dismantled through small slotted Technical Information
screwdriver if needed. ≫ Current Rating: 400A continuous with

120mmsq cable.
≫Withstanding Voltage: 1000Vac.
≫Test Voltage: 4500Vac.
≫Short Circuit Rating: Up to 35.5kA.
≫ Insulation Resistance: >5000 M Ohms at
500Vac.
≫Contact Resistance: 0.1m Ohms.
≫IP rating while mated: IP67.
≫Contact Material: Brass with silver plated.
≫ Housing Material: High Impact Resistant
Thermoplastic.
≫Cotter Pin Material: POM.
≫Working Temperature : 45 to 85 Degree C
≫Contact Type: Set Screw.
≫ Set Screw Torque on Brass Contact: 10.5 N/
meter (minimum required).
≫Mating Cycle: 500
≫Flammability: UL94-V0.
≫CE and RoHS compliant.
