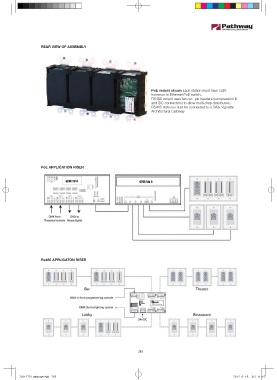

REAR VIEW OF ASSEMBLY
PoE variant shown Each station must have Cat5
homerun to Ethernet PoE switch..
RS485 variant uses two six- pin headers (compression fit
and IDC connectors) to allow multi-drop data buses.
RS485 stations must be connected to a 549x Vignette
Architectural Gateway
PoE APPLICATION RISER
Rs485 APPLICATON RISER
