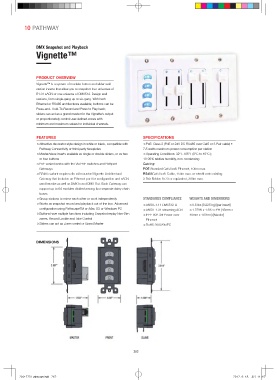

10 PATHWAY

DMX Snapshot and Playback
Vignette™

PRODUCT OVERVIEW
Vignette™ is a system of modular button and slider wall
station inserts that allow you to snapshot four universes of
E1.31 sACN or one universe of DMX512. Design wall
stations, from single-gang up to six-gang. With both
Ethernet or RS485 architectures available, buttons can be
Press-and- Hold-To-Record and Press to Play back;
sliders can act as a grand master for the Vignette’s output
or proportionately control user-defined zones with
minimum and maximum values for individual channels.

FEATURES SPECIFICATIONS
≫ Attractive decorator-style design in white or black, compatible with ≫PoE: Class 2 (PoE or 24V DC RS485 over Cat5 or 3 Pair cable) •
Pathway Connectivity or third-party faceplates 7.5 watts maximum power consumption per station
≫ Master/slave inserts available as single or double sliders, or as two ≫Operating Conditions: 32°F-105°F (0°C to 40°C );
or four buttons 10-90% relative humidity, non-condensing
≫ PoE variant works with the Via PoE switches and Pathport Cabling:
Gateways POE Standard Cat5/5e/6 Ethernet, 100m max.
≫ RS485 variant requires din-rail mounted Vignette Architectural RS485Cat5/5e/6 Cable, 150m max. or retrofit onto existing
Gateway that includes an Ethernet port for configuration and sACN 3 Pair Belden 9773 or equivalent, 300m max.
send/receive as well as DMX In and DMX Out. Each Gateway can
support up to 64 modules divided among four separate daisy-chain
buses
≫ Group stations to mirror each other or work independently STANDARDS COMPLIANCE WEIGHTS AND DIMENSIONS
≫ Works as snapshot record and playback out of the box. Advanced ≫ANSI E1.11 DMX512-A ≫0.5 lbs (0.225 kg) [per insert]
configuration using PathscapeTM on Mac OS or Windows PC ≫ANSI E1.31 streaming ACN ≫1.75”W x 1.6”D x 4”H (45mm x
≫ Buttons have multiple functions including Snapshot replay Non-Dim ≫ IEEE 802.3af Power-over- 40mm x 102mm) [Master]
zones, Record Enable and Take Control Ethernet
≫Sliders can act as Zone control or Grand Master ≫RoHS 2002/95/EC

DIMENSIONS

262
