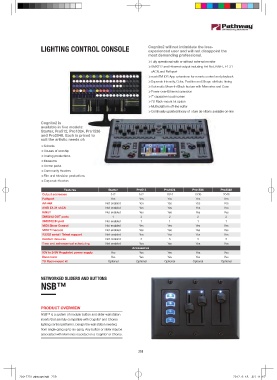

LIGHTING CONTROL CONSOLE Cognito2 will not intimidate the less-
experienced user and will not disappoint the
most demanding professional.
≫Fully operational with or without external monitor
≫ DMX512 and Ethernet output including Art-Net, KiNET, E1.31
sACN and Pathport
≫neatoTM iOS App extensions for remote control and playback
≫Separate Intensity, Color, Position and Shape attribute timing
≫Automatic Move-In-Black feature with Memories and Cues
≫Power-over-Ethernet operation
≫7" capacitive touchscreen
≫7U Rack-mount kit option
≫Multi-platform off-line editor
≫Continually updated library of xture de nitions available on-line

Cognito2 is
available in five models:
Starter, Pro512, Pro1024, Pro1536
and Pro2048. Each is priced to
suit the artistic needs of:
≫Schools
≫Houses of worship
≫Touring productions
≫Museums
≫Theme parks
≫Community theaters
≫Film and television productions
≫Corporate theaters

Features Starter Pro512 Pro1024 Pro1536 Pro2048
Output addresses 512 512 1024 1536 2048
Pathport Yes Yes Yes Yes Yes
Art-Net Not enabled Yes Yes Yes Yes
ANSI E1.31 sACN Not enabled Yes Yes Yes Yes
KiNET Not enabled Yes Yes Yes Yes
DMX512 OUT ports 1 2 2 2 2
DMX512 IN port Not enabled 1 1 1 1
MIDI Show Control Not enabled Yes Yes Yes Yes
MIDI Timecode Not enabled Yes Yes Yes Yes
RS232 serial / Telnet support Not enabled Yes Yes Yes Yes
Contact closures Not enabled 3 3 3 3
Time and astronomical scheduling Not enabled Yes Yes Yes Yes
Accessories
90V to 240V Regulated power supply Yes Yes Yes Yes Yes
Dust cover Yes Yes Yes Yes Yes
7U Rack-mount kit Optional Optional Optional Optional Optional

NETWORKED SLIDERS AND BUTTONS
NSB™

PRODUCT OVERVIEW
NSB™ is a system of modular button and slider wall station
inserts that are fully compatible with Cognito² and Choreo
lighting control platforms. Design the wall station needed,
from single-gang up to six-gang. Any button or slider may be
associated with Memories recorded on a Cognito² or Choreo.
