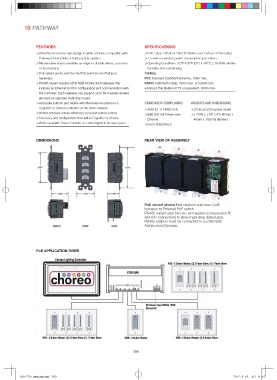

10 PATHWAY

FEATURES SPECIFICATIONS
≫ Attractive decorator-style design in white or black, compatible with ≫PoE: Class 2 (PoE or 24V DC RS485 over Cat5 or 3 Pair cable)
Pathway Connectivity or third-party faceplates ≫7.5 watts maximum power consumption per station
≫ Master/slave inserts available as single or double sliders, or as two ≫ Operating Conditions: 32°F-105°F (0°C to 40°C ); 10-90% relative
or four buttons humidity, non-condensing
≫ PoE variant works with the Via PoE switches and Pathport Cabling:
Gateways POE Standard Cat5/5e/6 Ethernet, 100m max.
≫ RS485 variant requires eDIN NSB Architectural Gateway that RS485 Cat5/5e/6 Cable, 150m max. or retrofit onto
includes an Ethernet port for configuration and communication with existing 3 Pair Belden 9773 or equivalent, 300m max.
the controller. Each Gateway can support up to 64 modules divided
among four separate multi-drop buses
≫ Associate buttons and sliders with Memories recorded on a STANDARDS COMPLIANCE WEIGHTS AND DIMENSIONS
Cognito2 or Choreo controller on the same network ≫ANSI E1.11 DMX512-A ≫0.5 lbs (0.225 kg) [per insert]
≫Button behavior mimics Memory’s recorded button actions ≫ IEEE 802.3af Power-over- ≫ 1.75”W x 1.6”D x 4”H (45mm x
≫Discovery and configuration from within Cognito2 or Choreo Ethernet 40mm x 102mm) [Master]
≫Works well with Room Combine to control lights in its own space ≫RoHS 2002/95/EC

DIMENSIONS REAR VIEW OF ASSEMBLY

PoE variant shown Each station must have Cat5
homerun to Ethernet PoE switch.
RS485 variant uses two six- pin headers (compression fit
and IDC connectors) to allow multi-drop data buses.
RS485 stations must be connected to a 539x NSB
Architectural Gateway

PoE APPLICATION RISER
