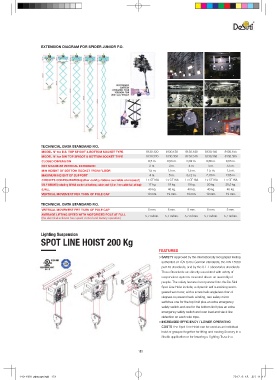

EXTENSION DIAGRAM FOR SPIDER JUNIOR P.O.




























                     TECHNICAL DATA STANDARD P.O.
                     MODEL N° for B.S. TOP SPIGOT & BOTTOM SOCKET TYPE  8130.120  8130.130  8130.140  8130.150  8130.155
                     MODEL N° for DIN TOP SPIGOT & BOTTOM SOCKET TYPE   8130.320  8130.330  8130.340  8130.350  8130.355
                     CLOSED DIMENSION                                    0,5 m.   0,56 m.  0,62 m.   0,65 m.  0,65 m.
                     NET MAXIMUM VERTICAL EXTENSION                      2 m.      3 m.     4 m.      5 m.     5,5 m.
                     MIN HEIGHT OF BOTTOM SOCKET FROM FLOOR              1,5 m.   1,5 m.    1,5 m.   1,5 m.    1,5 m.
                     MAXIMUM HEIGHT OF SUPPORT                           4 m.      5 m.    6,12 m.   7,15 m.  7,65 m.
                     CIRCUITS CONFIGURATION((other configurations available on request)  1 x CE16A  1 x CE16A  1 x CE16A  1 x CE16A  1 x CE16A
                     SELF WEIGHT(including CE16A socket at bottom, cable and 1,5 m. free cable tail at top):  17 kg.  18 kg.  19 kg.  20 kg.  20,5 kg.
                     S.W.L.                                              40 kg.   40 kg.    40 kg.   40 kg.    40 kg.
                     VERTICAL MOVEMENT PER TURN OF POLE CAP             19 mm.    19 mm.   19 mm.    19 mm.   19 mm.

                     TECHNICAL DATA STANDARD P.O.
                     VERTICAL MOVEMENT PER TURN OF POLE CAP              5 mm.    5 mm.     5 mm.    5 mm.     5 mm.
                     AVERAGE LIFTING SPEED WITH MOTORIZED POLE AT FULL  5,7 m/min.  5,7 m/min.  5,7 m/min.  5,7 m/min.  5,7 m/min.
                     (the electrical activator has speed control and battery operation)



                     Lighting Suspension
                     SPOT LINE HOIST 200 Kg

                                                                              FEATURES
                                                                              ≫ SAFETY Approved by the Internationally recognized testing
                                                                               authorities of TÜV to the German standards, the DIN 15560
                                                                               part 46 standards, and by the U.L. Laboratories standards.
                                                                               These Standards are directly associated with safety of
                                                                               suspensions systems mounted above an assembly of
                                                                               people. The safety features incorporated into the De Sisti
                                                                               Spot Line Hoist include, a dynamic self sustaining worm-
                                                                               geared set motor, with a screw helix angle less than 4
                                                                               degrees to prevent back winding, two safety micro
                                                                               switches one for the top limit plus an extra emergency
                                                                               safety switch and one for the bottom limit plus an extra
                                                                               emergency safety switch and over load and slack line
                                                                               detection on each wire rope.
                                                                              ≫ INCREASED EFFICIENCY / LOWER OPERATING
                                                                               COSTS The Spot Line Hoist can be used as an individual
                                                                               hoist or grouped together for lifting and moving Scenery in a
                                                                               Studio application or for lowering a Lighting Truss in a
