3131/PO/ST Pole operated studio version w/ 6’ lead & brass c-clamp included—without switch
Connector Designations
5965VBLK Parallel-blade U-ground connector
20PC-M Two-pin & ground, 20 amp connector
L5-20P Grounded, 20 amp, twistlock connector
MANUAL LIGHTING POLES
2736.200 Eight leaf barndoor
2739.100 Four piece stainless steel scrim set
2737.100 Outrigger coloroframe
2737.110 Outrigger coloroframe holding kit
1800 Safety cable
91.200 Solid brass c-clamp
DGP-A110 Combo stand w/ lazy leg, 1’’ socket & spigot
DGP-A9000 Caster wheel set with 4’’ diameter, braket
IFF - 3858 Telescopic operating pole 4’/6’/10’/13’
IFF – 3860 Telescopic operating pole 8’/16’/24’

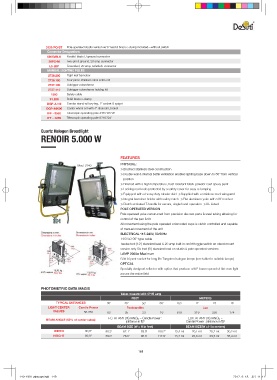

Quartz Halogen Broadlight
RENOIR 5.000 W

FEATURES
Mod. 3140 PHYSICAL:
≫Brushed stainless steel construction
≫ Double wall & internal baffle ventilation enables lighting base down to 60° from vertical
position
≫Finished with a high temperature, heat resistant black powder coat epoxy paint
≫Locking rear knob protected by a safety cover for easy re-lamping
≫Equipped with a heavy duty tubular skid ≫Supplied with a stainless steel wireguard
≫Integral barndoor holder with safety catch ≫Flat aluminum yoke with 5/8” receiver
≫Clutch activated T-handle for secure, single hand operation ≫UL Listed
POLE OPERATED VERSION
Pole operated yoke constructed from precision die cast parts & steel tubing allowing for
control of the pan & tilt
All movement using the pole operated colorcoded cups is clutch controlled and capable
of manual movement of the unit
ELECTRICAL 115-240V, 50/60Hz
14/3 SO 90° type cable
Twelve foot (12’) standard lead & 20 amp built-in on/off toggle switch on stand mount
version only Six foot (6’) standard lead on studio & pole operated versions
LAMP 2000w Maximum
G38 bi-post socket for long life Tungsten halogen lamps (see table for suitable lamps)
OPTICAL
Specially designed reflector with optics that produce a 90° beam spread of flat even light
across the entire field

PHOTOMETRIC DATA MAGIS
Values measured with: CP 85 Lamp
FEET METERS
TYPICAL DISTANCES 30’ 40’ 50’ 60’ 8,0 12 15 18
LIGHT CENTER Candle Power Footcandles Lux
VALUES 56.250 63 35 23 16 879 319 250 174
F.C. AT ANY DISTANCE = Candle Power : LUX. AT ANY DISTANCE =
BEAM ANGLE (50% of center value) (distance in ft)2 Candle Power : (distance in ft)2
BEAM SIZE (W x H in feet) BEAM SIZE(W x H in meters)
WIDTH 80,0° 50.3’ 67.1’ 83.9’ 100.7’ 13,4 mt 20,1 mt 25,2 mt 30,2 mt
HEIGHT 89,0° 59.0’ 78.6’ 98.3’ 117.9’ 15,7 mt 23,6 mt 29,5 mt 35,4 mt
