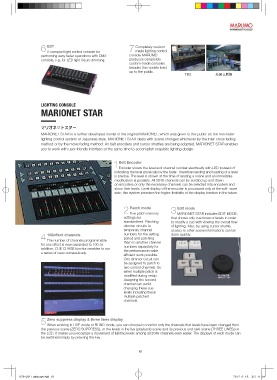

Page 63 - 루스케이프 방송무대 지명원

Completely custom-
6 EST 7 made lighting control
A compact light control console for
performing easy fader operations with DMX console MARUMO
controls, e.g. for LED light fixture dimming. produces completely
custom-made consoles
besides the models lined
up to the public.
TBS 新国立劇場

LIGHTING CONSOLE
MARIONET STAR

マリオネットスター
MARIONET STAR is a further developed model of the original MARIONET, which was given to the public as the non-fader
lighting control system of Japanese style. MARIONET STAR deals with scene changes whichever by the inter cross fading
method or by the move fading method. As belt encoders and cursor shuttles are being adopted, MARIONET STAR enables
you to work with user-friendly interface at the same time to accomplish exquisite lighting design.

1
Belt Encoder
Encoder shows the level and channel number electrically with LED instead of
indicating the level physically by the fader. Therefore reading and loading of a level
is precise. The level is shown at the time of reading a scene and an immediate
modification is possible. All 2048 channels can be scrolled up and down
on encoders or only the necessary channels can be selected into encoders and
show their levels. Level display of the encoder is processed only at the soft- ware
side, this system promises the higher flexibility of the display function in the future.

2 Patch mode 3 Edit mode
Five patch memory
MARIONET STAR includes EDIT MODE,
settings are that shows only cue times or levels in order
standardized. Patching to modify a cue with viewing the overall flow
dimmer circuits to of lighting. Also, by using cursor shuttle,
temporary channel access to other scene informations can be
4 100effect channels numbers for the setting done quickly.
period and patching
The number of channels programmable
for one effect is now expanded to 100. In them to another channel
numbers separately for
addition, CUE CHASE function enables to run the performance make
a series of cues consecutively. efficient work possible.
One dimmer circuit can
be assigned to patch to
two control channels. So
when multiple patch is
modified during setup.
Assigning the second
channel can avoid
changing these cue
levels including these
multiple patched
channels.

5 Zero suppress display & three lines display
When working in LIVE mode or BLIND mode, you can choose to monitor only the channels that levels have been changed from
the previous scene [ZERO SUPPRESS], or the levels in the live (playback) scene and its previous and next scene [THREE LINES] on
the LCD. It makes you recognize a movement of lighting levels among all 2048 channels even easier. The displays of each mode can
be switched simply by pressing the key.
