01 MARUMO

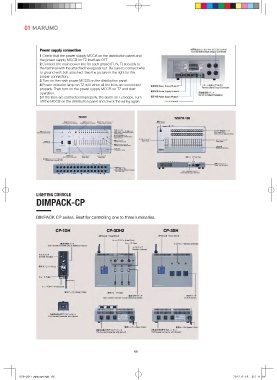

Power supply connection
1 Check that the power supply MCCB on the distribution panel and
the power supply MCCB on TZ itself are OFF.
2 Connect the main power line for each phase (R, N, T) securely to
the terminal with the attached hexagonal nut. Be sure to connect wire
to ground with bolt attached. See the picture in the right for the
proper connection.
3 Turn on the main power MCCB on the distribution panel.
4 Power indicator lamp on TZ is lit when all the lines are connected
properly. Then turn on the power supply MCCB on TZ and start
operation.
5 If the lines are connected improperly, the alarm on TZ beeps. Turn
off the MCCB on the distribution panel and check the wiring again.

LIGHTING CONSOLE
DIMPACK-CP

DIMPACK CP series. Best for controlling one to three luminaries.
