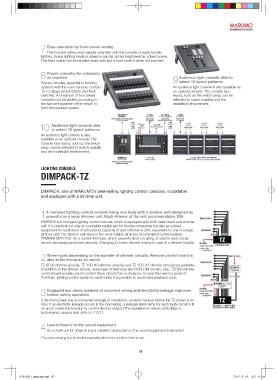

7 Easy operation by fixed scene setting
This function allows even people unfamiliar with the console to easily handle
lighting. Scene lighting made in advance can be set and registered as a fixed scene.
This fixed scene can be recalled easily with just a touch even if when not patched.

Preset consoles for extension
8 as required Audience light console able to
Preset consoles, essential to forming 9 select 10 layout patterns
systems with the main console, contain An audience light console is also available as
12 x 2-stage preset faders and flash an optional console. The console face
switches. A maximum of four preset layout, such as the switch array, can be
consoles can be added, according to selected to match usability and the
the size and purpose of the venue, to installation environment.
form the required system.

Audience light console able
10 to select 10 layout patterns
An audience light console is also
available as an optional console. The
console face layout, such as the switch
array, can be selected to match usability
and the installation environment.

LIGHTING CONSOLE
DIMPACK-TZ

DIMPACK, one of MARUMO’s best-selling lighting control consoles, is portable
and equipped with a dimmer unit.

A compact lighting control console being one body with a dimmer unit designed as
1 powerful as a large dimmer unit. Each dimmer of the unit accommodates 20A
DIMPACK is a compact lighting control console, which is equipped with both fader board and dimmer
unit. It is practical not only as a portable equipment for touring companies but also as a fixed
equipment for auditorium of schools.(※) Capacity of each dimmer is 20A, equivalent to one in a large
dimmer unit. The dimmer unit takes in the most reliable dimmers of centralized control system,
ZEMMER MZB 201I. As a current-limit fuse, which prevents short circuiting, is used in each circuit,
circuits are always protected securely. Changing to a new dimmer is easy in case of a dimmer trouble.

Three types depending on the number of dimmer circuits. Remote control board is
2 also in the lineup as an option
TZ-6D (6 dimmer circuits), TZ-10D (10 dimmer circuits), and TZ-15D (15 dimmer circuits) are available.
In addition to the dimmer circuits, every type of them has two NON-DIM circuits. Also, TZOPR remote
control board enables you to control these circuits form a distance. In case the memory panel of
PLAYNET lighting control system is used jointly, it is possible to record and playback cues.

Equipped two alarm systems of incorrect-wiring and electricity leakage improves
3 further safety operation
If the main power line is connected wrongly at installation, an alarm sounds before the TZ power is on.
Also, if an electricity leakage occurs in the load wiring, a leakage alarm lamp for each faulty circuit is lit
on and it meets the function to control dimmer output (‘The Guideline for electrical facilities in
performance spaces and JATET-L-7121’).

4 Less influence to the sound equipment
As a chalk coil for antijamming is installed, obstruction to the sound equipment is lessened.
※ Load processing box is needed separately when the console is fixed to use.
