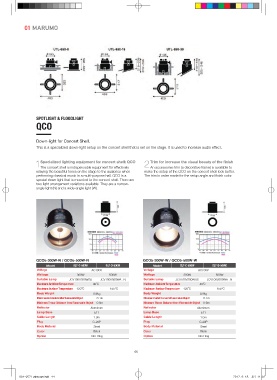

01 MARUMO

SPOTLIGHT & FLOODLIGHT
QCO

Down-light for Concert Shell.
This is a specialized down-light setup on the concert shell that is set on the stage. It is used to increase audio effect.

Specialized lighting equipment for concert shell: QCO
1 2 Trim for increase the visual beauty of the finish
An accessories trim (a decorative frame) is available to
The concert shell is indispensable equipment for effectively
relaying the beautiful tones on the stage to the audience when make the setup of the QCO on the concert shell look better.
performing classical music in a multi-purpose hall. QCO is a The trim is order made for the setup angle and finish color.
special down light that is mounted to the concert shell. There are
two light arrangement variations available. They are a narrow-
angle light (N) and a wide-angle light (W).

QCO5-300W-N / QCO5-500W-N QCO5-300W-W / QCO5-500W-W
Model SLF-C-500W SLF-D-500W Model SLF-C-500W SLF-D-500W
Voltage AC100V Voltage AC100V
Wattage 300W 500W Wattage 300W 500W
Suitable Lamp JCV100V300WGS JCV100V500WA . N Suitable Lamp JCV100V300WGS JCV100V500WA . N
Maximum Ambient Temperature 40 ̊C Maximum Ambient Temperature 40 ̊C
Maximum Surface Temperature 120 ̊C 155°C Maximum Surface Temperature 120 ̊C 155°C
Body Weight 0.9kg Body Weight 0.9kg
MinimumSafeIntervaltoFlammableObject 0.1m MinimumSafeIntervaltoFlammableObject 0.1m
Minimum Throw Distance from Flammable Object 0.6m Minimum Throw Distance from Flammable Object 0.6m
Reflector Aluminum Reflector Aluminum
Lamp Base E11 Lamp Base E11
Cable Length 1.0m Cable Length 1.0m
Plug C-20P Plug C-20P
Body Material Steel Body Material Steel
Color Black Color Black
Option Trim Ring Option Trim Ring
