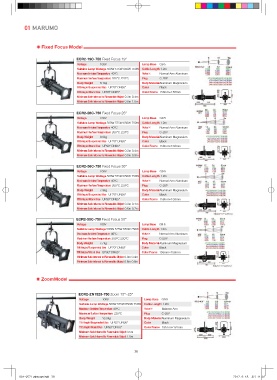

01 MARUMO
⁕ Fixed Focus Model
ECR2-19C-750 Fixed Focus 19°
Voltage 100V Lamp Base G9.5
Suitable Lamp Wattage 500W 575W 650W 750W Cable Length 1.2m
Maximum Ambient Temperature 40°C Yoke※ Normal Arm Aluminum
Maximum Surface Temperature 200°C 220°C Plug C-20P
Body Weight 8.1kg Body MaterialAluminum Magnesium
Tilt Angle/Suspended Use UP70° DN90° Color Black
Tilt Angle/Stand Use UP90° DN65° Color Frame 158mm×158mm
Minimum Safe Interval to Flammable Object 0.3m 0.4m
Minimum Safe Interval to Flammable Object 0.8m 1.0m
ECR2-26C-750 Fixed Focus 26°
Voltage 100V Lamp Base G9.5
Suitable Lamp Wattage 500W 575W 650W 750W Cable Length 1.2m
Maximum Ambient Temperature 40°C Yoke※ Normal Arm Aluminum
Maximum Surface Temperature 200°C 220°C Plug C-20P
Body Weight 8.0kg Body MaterialAluminum Magnesium
Tilt Angle/Suspended Use UP70° DN90° Color Black
Tilt Angle/Stand Use UP90° DN65° Color Frame 158mm×158mm
Minimum Safe Interval to Flammable Object 0.3m 0.4m
Minimum Safe Interval to Flammable Object 0.8m 0.9m
ECR2-36C-750 Fixed Focus 36°
Voltage 100V Lamp Base G9.5
Suitable Lamp Wattage 500W 575W 650W 750W Cable Length 1.2m
Maximum Ambient Temperature 40°C Yoke※ Normal Arm Aluminum
Maximum Surface Temperature 200°C 220°C Plug C-20P
Body Weight 7.9kg Body MaterialAluminum Magnesium
Tilt Angle/Suspended Use UP70° DN90° Color Black
Tilt Angle/Stand Use UP90° DN65° Color Frame 158mm×158mm
Minimum Safe Interval to Flammable Object 0.3m 0.4m
Minimum Safe Interval to Flammable Object 0.6m 0.7m
ECR2-50C-750 Fixed Focus 50°
Voltage 100V Lamp Base G9.5
Suitable Lamp Wattage 500W 575W 650W 750W Cable Length 1.2m
Maximum Ambient Temperature 40°C Yoke※ Normal Arm Aluminum
Maximum Surface Temperature 200°C 220°C Plug C-20P
Body Weight 7.7kg Body MaterialAluminum Magnesium
Tilt Angle/Suspended Use UP70° DN90° Color Black
Tilt Angle/Stand Use UP90° DN65° Color Frame 158mm×158mm
Minimum Safe Interval to Flammable Object 0.3m 0.4m
Minimum Safe Interval to Flammable Object 0.6m 0.5m
⁕ ZoomModel
ECR2-ZN1525-750 Zoom 15°~25°
Voltage 100V Lamp Base G9.5
Suitable Lamp Wattage 500W 575W 650W 750W Cable Length 1.2m
Maximum Ambient Temperature 40°C Yoke※ Balance Arm
Maximum Surface Temperature 220°C Plug C-20P
Body Weight 13.3kg Body MaterialAluminum Magnesium
Tilt Angle/Suspended Use UP65° DN90° Color Black
Tilt Angle/Stand Use UP90° DN70° Color Frame 191mm×191mm
Minimum Safe Interval to Flammable Object 0.5m
Minimum Safe Interval to Flammable Object 1.0m
