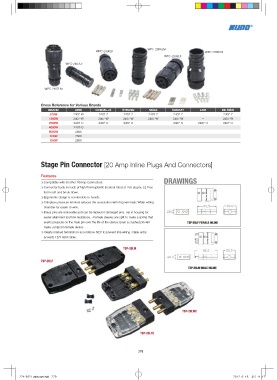

Page 281 - 루스케이프 방송무대 지명원

WPC-2806LM
WPC-2806LF WPC-2809LM
WPC-2809LF
WPC-2407LF

WPC-2407LM

Cross Reference for Various Brands
BRAND ARRI CINEMILLS STRAND MOLE SUNRAY LTM DE-SISTI
575W 2407-W 2407-Z 2407-Z 2407-Z 2407-Z — 2407-Z
1200W 2407-W 2407-W 2407-W 2407-W 2407-W — 2407-W
2500W 2407-O 2407-O 2407-O — 2407-O 2407-O 2407-O
4000W 2407-O
6000W 2806
12KW 2809
18KW 2809

Stage Pin Connector [20 Amp Inline Plugs And Connectors]

Features
DRAWINGS
≫Compatible with all other 20Amp Connectors.
≫ Connector body is made of high thermoplastic (materal rated at 250 degree C); Free
from melt and break down.
≫Ergonomic design is comfortable to handle.
≫ Crimpless pressure terminal reduces the association with ring terminals; Wider wiring
chamber for easier to wire.
≫ Brass pins are removable and can be replace if damaged pins oat in housing for
easier alignment and low resistance. - Female sleeves are spilt to make a spring that
exerts pressure on the male pin over the life of the device; Even a crushed pin will
make contact in female device.
≫ Clearly marked terminals in accordance NEC to prevent mis-wiring. Cable entry
accepts 12/3 hard cable.

279
