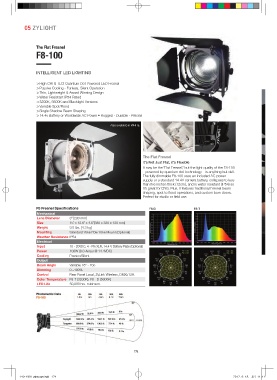

05 ZYLIGHT

The Flat Fresnel
F8-100

INTELLIGENT LED LIGHTING
≫High CRI & TLCI Quantum Dot Powered LED Fresnel
≫Passive Cooling - Fanless, Silent Operation
≫Thin, Lightweight & Award Winning Design
≫Water Resistant IP54 Rated
≫3200K, 5600K and Blacklight Versions
≫Variable Spot/Flood
≫Single Shadow Beam Shaping
≫14.4v Battery or Worldwide AC Power • Rugged - Durable - Precise

Also available in WHITE

The Flat Fresnel
It’s Not Just Flat, it’s Flexible
It may be the “Flat Fresnel,” but the light quality of the F8-100
– powered by quantum dot technology – is anything but dull.
The fully dimmable F8-100 uses an included AC power
supply or a standard 14.4V camera battery, collapses to less
than five inches thick (12cm), and is water resistant (IP54) so
it’s great for ENG. Plus, it features traditional Fresnel beam
shaping, spot to flood operations, and custom barn doors.
Perfect for studio or field use.

F8 Fresnel Specifications F8-D F8-T
Mechanical
Lens Diameter 8” [200 mm]
Size 15” x 12.6” x 4.6”[380 x 320 x 120 mm]
Weight 9.5 lbs. [4.3 kg]
Mounting Standard Yoke Pole Yoke Mount (Optional)
Weather Resistance IP54
Electrical
Input 10 - 20VDC, 4 - Pin XLR, 14.4 V Battery Plate (Optional)
Power 100W (8.0 Amps @ 14.4VDC)
Cooling Passive/Silent
Output
Beam Angle Variable 16° - 70o
Dimming 0 –100%
Control Rear Panel Local, ZyLink Wireless, DMX512A.
Color Temperature F8-T (3200K), F8 - D (5600K)
LED Life 50,000 hrs. minimum.
