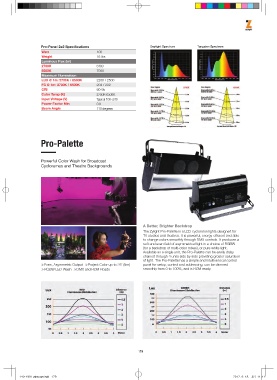

Page 181 - 루스케이프 방송무대 지명원

Pro-Panel 2x2 Specifications Daylight Spectrum Tungsten Spectrum
Watt 100
Weight 16 lbs
Luminous Flux (lm)
2700K 6100
6500K 7000
Maximum Illumination
LUX @ 1m: 2700K / 6500K 2200 / 2500
FC @ 1m: 2700K / 6500K 204 / 232
CRI 90-95
Color Temp (K) 2700K-6500K
Input Voltage (V) Typical 100~240
Power Factor Min 0.9
Beam Angle 110 degrees

Pro-Palette

Powerful Color Wash for Broadcast
Cycloramas and Theatre Backgrounds

A Better, Brighter Backdrop
The Zylight Pro-Palette is a LED cyclorama lights designed for
TV studios and theatres. It is powerful, energy-efficient and able
to change colors smoothly through DMX controls. It produces a
soft and even field of asymmetrical light in a choice of RGBW
(for a backdrop of multi-color mixes), or pure white light.
Available as a single unit, the Pro-Palette can be easily daisy
chained through 4 units side by side providing greater saturation
of light. The Pro-Palette has a simple and intuitive local control
≫Even, Asymmetric Output ≫Project Color up to 25’ (8m) panel for setup, control and addressing, can be dimmed
≫RGBW LED Wash ≫DMX and RDM Ready smoothly from 0 to 100%, and is RDM ready.
