P. 173

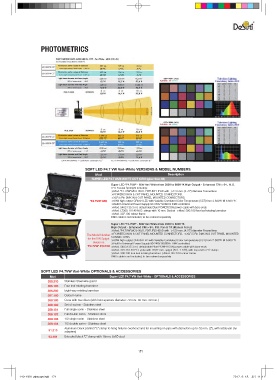

PHOTOMETRICS
SOFT LED F4.7 VW Vari-White VERSIONS & MODEL NUMBERS
Mod Description
SUPER LED F4.7 VARI WHITE CCT (CRI higher than 94)
Super LED "F4.7VW" - 60W Vari White from 2800 to 6600 °K High Output - Enhanced CRI > 94 , M.O.
LED Fresnel Spotlight including:
≫Mod. "F4.7VW".MO.H M.O. FIXTURE HEAD with ≫120 mm. (4.75”) diameter Fresnel lens
≫POWERCON IN & OUT PANEL MOUNTED CONNECTORS.
≫XLR 5 Pin DMX IN & OUT PANEL MOUNTED CONNECTORS.
"F4.7VW".MO ≫60W high output CRI>94 LED with Variable Correlated Color Temperature (CCT) from 2.800°K till 6.600 °K
≫Built In Universal Power Supply 90-240V 50/60Hz DMX controlled.
≫Mod. 5403.135 3 mt. detachable Blue POWERCON power cable with bare ends
≫Mod. LT300.110.40 M.O. stirrup with 16 mm. Socket ≫Mod. 306.100 four leaf rotating barndoor
≫Mod. 307.100 colour frame
DMX cable is not included, to be ordered separately
Super LED "F4.7VW" - 60W Vari White from 2800 to 6600 °K
High Output - Enhanced CRI > 94 , P.O. Pan & Tilt (Manual Focus)
≫Mod. "F4.7VW".MO.H M.O. FIXTURE HEAD with ≫120 mm. (4.75”) diameter Fresnel lens
The Model Number ≫POWERCON IN & OUT PANEL MOUNTED CONNECTORS. ≫XLR 5 Pin DMX IN & OUT PANEL MOUNTED
for the DIN Spigot CONNECTORS.
≫60W high output CRI>94 LED with Variable Correlated Color Temperature (CCT) from 2.800°K till 6.600 °K
Version is ≫Built In Universal Power Supply 90-240V 50/60Hz DMX controlled.
"F4.7VW".PO.DIN ≫Mod. 5403.135 3 mt. detachable Blue POWERCON power cable with bare ends
≫Mod. 301.110.40 P.O. yoke with 28,57 mm. spigot (B.S. 1 1/8"), with top end for "C" clamp
≫Mod. 306.100 four leaf rotating barndoor ≫Mod. 307.100 colour frame
DMX cable is not included, to be ordered separately
SOFT LED F4.7VW Vari-White OPTIONALS & ACCESSORIES
Mod Super LED F4.7 VW Vari-White - OPTIONALS & ACCESSORIES
305.310 Stainless Steel wire guard
306.100 Four leaf rotating barndoor
306.200 Eight way rotating barndoor
307.100 Colour Frame
308.100 Cone with two discs (with front aperture diameter: 70 mm. 50 mm. 30 mm.)
309.100 Set of scrims - Stainless steel
309.101 Full single scrim - Stainless steel
309.102 Full double scrim - Stainless steel
309.103 1/2 single scrim - Stainless steel
309.104 1/2 double scrim - Stainless steel
Aluminum black painted "C" clamp to hang fixtures overhead and for mounting on pipe with diameters up to 52 mm. (2"), with safety pin (no
91.210 adapters)
93.101 Extruded black "C" clamp with 16mm. (5/8") stud
171
