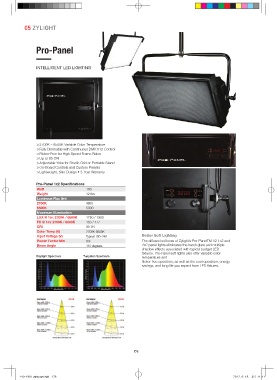

05 ZYLIGHT
Pro-Panel
INTELLIGENT LED LIGHTING
≫2700K – 6500K Variable Color Temperature
≫Fully Dimmable with Continuous DMX 512 Control
≫Flicker-Free for High Speed Frame Rates
≫Up to 95 CRI
≫Adjustable Yoke for Studio Grid or Portable Stand
≫On-Board Controls and Custom Presets
≫Lightweight, Slim Design • 3-Year Warranty
Pro-Panel 1x2 Specifications
Watt 100
Weight 12 lbs
Luminous Flux (lm)
2700K 4800
6500K 5300
Maximum Illumination
LUX @ 1m: 2700K / 6500K 1750 / 1900
FC @ 1m: 2700K / 6500K 163 / 177
CRI 90-94
Color Temp (K) 2700K-6500K
Input Voltage (V) Typical 100~240 Better Soft Lighting
Power Factor Min 0.9 The diffused softness of Zylight’s Pro-PanelTM V2 1x2 and
Beam Angle 110 degrees 2x2 panel lights eliminates the harsh glare and multiple
shadow effects associated with typical budget LED
fixtures. Pro-Panel soft lights also offer variable color
Daylight Spectrum Tungsten Spectrum temperature and
flicker-free operation, as well as the cool operation, energy
savings, and long life you expect from LED fixtures.
