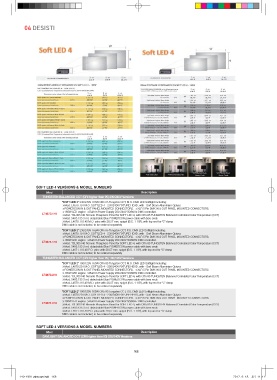

Page 170 - 루스케이프 방송무대 지명원

04 DESISTI

SOFT LED 4 VERSIONS & MODEL NUMBERS
Mod Description
TUNGSTEN BALANCED CCT (CRI higher than 95) 230/240V Versions
"SOFT LED 2" 230/240V 165W CRI>95 Tungsten CCT, M.O. DMX LED Softlight including:
≫Mod. L4670.101 M.O. SOFTLED 4 - 230/240V FIXTURE HEAD, with - Soft Beam Alluminium Optycs
≫POWERCON IN & OUT PANEL MOUNTED CONNECTORS. ≫XLR 5 Pin DMX IN & OUT PANEL MOUNTED CONNECTORS.
≫165W LED engine ≫Built In Power Supply 230-240V 50/60Hz DMX controlled.
LT4670.110 ≫Mod. TCL305140 Remote Phosphors Panel for SOFT LED 4, with CRI>95 TUNGSTEN Balanced Correlated Color Temperature (CCT)
≫Mod. 5403.135 3 mt. detachable Blue POWERCON power cable with bare ends
≫Mod. L4670.110.40 M.O. yoke with 28,57 mm. spigot (B.S. 1 1/8"), with top end for "C" clamp
DMX cable is not included, to be ordered separately
"SOFT LED 2" 230/240V 165W CRI>95 Tungsten CCT, P.O. DMX LED Softlight including:
≫Mod. L4670.101 M.O. SOFTLED 4 - 230/240V FIXTURE HEAD, with - Soft Beam Alluminium Optycs
≫POWERCON IN & OUT PANEL MOUNTED CONNECTORS. ≫XLR 5 Pin DMX IN & OUT PANEL MOUNTED CONNECTORS.
≫165W LED engine ≫Built In Power Supply 230-240V 50/60Hz DMX controlled.
LT4671.110 ≫Mod. TCL305140 Remote Phosphors Panel for SOFT LED 4, with CRI>95 TUNGSTEN Balanced Correlated Color Temperature (CCT)
≫Mod. 5403.135 3 mt. detachable Blue POWERCON power cable with bare ends
≫Mod. L4671.110.40 P.O. yoke with 28,57 mm. spigot (B.S. 1 1/8"), with top end for "C" clamp
DMX cable is not included, to be ordered separately
TUNGSTEN BALANCED CCT (CRI higher than 95) 100/120V Versions
"SOFT LED 2" 100/120V 165W CRI>95 Tungsten CCT, M.O. DMX LED Softlight including:
≫Mod. L4670.201 M.O. SOFTLED 4 - 230/240V FIXTURE HEAD, with - Soft Beam Alluminium Optycs
≫POWERCON IN & OUT PANEL MOUNTED CONNECTORS. ≫XLR 5 Pin DMX IN & OUT PANEL MOUNTED CONNECTORS.
≫165W LED engine ≫Built In Power Supply 230-240V 50/60Hz DMX controlled.
LT4670.210 ≫Mod. TCL305140 Remote Phosphors Panel for SOFT LED 4, with CRI>95 TUNGSTEN Balanced Correlated Color Temperature (CCT)
≫Mod. 5403.135 3 mt. detachable Blue POWERCON power cable with bare ends
≫Mod. L4670.110.40 M.O. yoke with 28,57 mm. spigot (B.S. 1 1/8"), with top end for "C" clamp
DMX cable is not included, to be ordered separately
"SOFT LED 2" 100/120V 165W CRI>95 Tungsten CCT, P.O. DMX LED Softlight including:
≫Mod. L4670.201 M.O. SOFTLED 4 - 230/240V FIXTURE HEAD, with - Soft Beam Alluminium Optycs
≫POWERCON IN & OUT PANEL MOUNTED CONNECTORS. ≫XLR 5 Pin DMX IN & OUT PANEL MOUNTED CONNECTORS.
≫165W LED engine ≫Built In Power Supply 230-240V 50/60Hz DMX controlled.
LT4671.210 ≫Mod. TCL305140 Remote Phosphors Panel for SOFT LED 4, with CRI>95 TUNGSTEN Balanced Correlated Color Temperature (CCT)
≫Mod. 5403.135 3 mt. detachable Blue POWERCON power cable with bare ends
≫Mod. L4671.110.40 P.O. yoke with 28,57 mm. spigot (B.S. 1 1/8"), with top end for "C" clamp
DMX cable is not included, to be ordered separately

SOFT LED 4 VERSIONS & MODEL NUMBERS
Mod Description
DAYLIGHT BALANCED CCT (CRI higher than 90) 230/240V Versions
