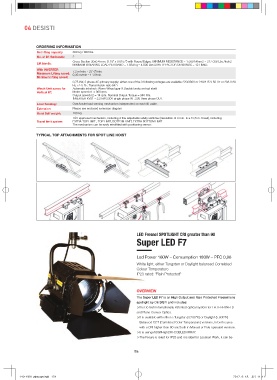

04 DESISTI

ORDERING INFORMATION
Net lifting capacity 300 kg / 660 lbs.
No. of lift flat bands: 2
Cross Section 30x0.4 mm. (1.18” x 0.0157”) with Round Edges. MINIMUM RESISTANCE = 1.500 N/mm2 = 217.026 Lbs./Inch2
Lift bands: MINIMUM BREAKING LOAD PER BAND = 1.834 kg – 4.036 Lbs SAFETY FACTOR ON BANDS = 12 TIMES
With INVERTER 7,2 m/min. - 23’ 6”/min.
Maximum Lifting speed: 0,36 m/min – 1’ 2“/min.
Minimum lifting speed:
0,75 kW, 3 phase AC primary supply: either one of the 3 following voltages are available 220/380V or 240/415 V 50 Hz or 208 V 60
Hz +/- 5 % , Transmission ratio 64:1
Winch Unit specs for Automatic interlock: Worm Wheel gear & Double brake on fast shaft
Vertical lift: Motor speed n1 = 900 rpm.
Output speed n2 = 14 rpm. Nominal Output Torque = 340 Nm.
INVERTER KV51 – 2,2 kW 230V single phase IN , 230 three phase OUT.
Load Sensing : Over/under load sensing mechanism independent on each lift cable.
Extension: Please see enclosed extension diagram
Hoist Self weight: 100 kg.
TÜV approved mechanism, including 4 fine adjustable safety switches (resolution of 3 mm. in a 10,5 m. travel), including:
Travel limit system EXTRA TOP LIMIT , TOP LIMIT, BOTTOM LIMIT, EXTRA BOTTOM LIMIT
The mechanism can be easly retrofitted with positioning sensor.

TYPICAL TOP ATTACHMENTS FOR SPOT LINE HOIST

LED Fresnel SPOTLIGHT CRI greater than 90
Super LED F7

Led Power 160W – Consumption 180W – PFC 0,96
White light, either Tungsten or Daylight balanced Correlated
Colour Temperature
IP23 rated: “Rain Protected”

OVERVIEW
The Super LED F7 is an High Output and Rain Protected Fresnel lens
spotlight by DE SISTI and includes:
≫the De Sisti Internationally Patented optical system for LED FRESNELS
and Plano Convex Optics.
≫ It is available with either a Tungsten (3.200°K) or Daylight (5.600°K)
Balanced CCT (Correlated Color Temperature) versions, in both cases
with a CRI higher than 90 and both in Manual or Pole operated versions.
≫It is usinga160WHighCRI-COBLEDARRAY.
≫ The Fixture is rated for IP23 and it is ideal for Location Work, it can be
