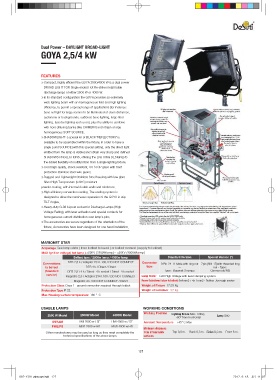

Dual Power – DAYLIGHT BROAD-LIGHT
GOYA 2,5/4 kW

FEATURES
≫ Compact, highly efficient the GOYA 2500/4000 W is a dual power
BROAD LIGHT FOR Single ended Hot Re-strike metal halide
discharge lamps of either 2500 W or 4000 W.
≫ In its standard configuration the GOYA provides an extremely
wide lighting beam with an homogeneous field and high lighting
efficiency, to permit a spread range of applications (for instance:
base set light for large scenes to be illuminated at close distances,
cyclorama or backgrounds, audience base lighting, large floor
lighting, facedes lighting and so on), plus the ability to combine
with front diffusing banks (like CHIMERA) and obtain a large
homogeneous SOFT SOURCE.
≫ SHADOWLIGHT: a special kit of BLACK “REFLECTORS” is
available to be assembled within the fixture, in order to have a
single point SOURCE (with this special setting, only the direct light
emitted from the lamp is visible) and obtain very sharp and defined
SHADOWS PROJECTIONS, offering the LIGHTING DESIGNERS
the added flexibility of multifunction from a single lighting fixture.
≫ Front high quality, shock resistant, UV STOP glass with front
protection stainless steel wire guard.
≫ Rugged and Lightweight Stainless Steel housing with low glare
Silver High Temperature (530°C) resistant
powder coating, with internal double walls and reinforces.
≫ High efficiency convection cooling. The cooling system is
designed to allow the continuous operation of the GOYA in stip
TILT Angles.
≫ Heavy-duty G-38 bi-post socket for Discharge Lamps (High
Voltage Rating), with lever activation and special contacts for
homogeneous current distribution over lamp’s pins.
≫ The accessories are secure regardless of the orientation of the
fixture. Accessories have been designed for one hand installation.

MARIONET STAR
Amperage See lamp data ( from ballast to head ) or ballast manual ( supply to ballast)
MAX Ignition voltage( hot lamp ) ≈50KV (2500Wlamp) - ≈55KV (4000Wlamp)
Ballast type / 2500w lamp / 4000w lamp Standard Version Special Version (*)
DEB 2,5 k / Adaptor 2341.100 / DO NOT CONNECT
Connections Connector 9 Pin 24-11 Male with ring nut 7pin (6M-1F)with threaded ring
to ballast DEB 4 k / Direct / Direct type — nut - Type :
(Standard DEB 2,5 \ 4 k / Direct -4 k socket / Direct -4 k socket Type : Bayonet 3 ramps German std M3
version) Magnetic 2,5 / Adaptor 2341.100 / DO NOT CONNECT Lamp Holder G38 High Voltage with lever clamping system.
Magnetic 4 k / DO NOT CONNECT / Direct Power Cable(from fixture to ballast) 3x4 mm2 + 4x 1 mm2 - Rubber , for rough service
Protection Class Class 1– ground connection required through ballast Weight of Fixture 17,33 Kg
Protection Type IP 22 Weight of barndoor 4,2 kg.
Max Housing surface temperature 180 °C

USABLE LAMPS WORKING CONDITIONS
Working Position Lighting fixture Max. Tilting
2500 W Model 2500W Model 4000W Model Lamp S90
±90° from horizontal
OSRAM HMI 2500 w / SE HMI 4000 w / SE Ambient Temperature +45° C Max
PHILIPS MSR 2500 w HR MSR 4000 w HR
Minimum distances
Other manufacturers may be used as long as they meet completely the from inflammable Top 0,8 m. Back 0,3 m. Sides 0,3 m. Front 6 m.
technical specifications of the above lamps surfaces
