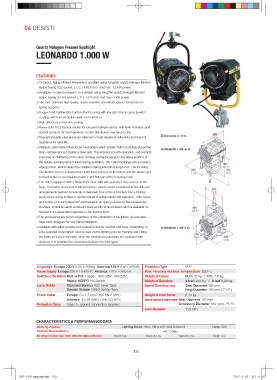

04 DESISTI

Quartz Halogen Fresnel Spotlight
LEONARDO 1.000 W

FEATURES
≫ Compact, highly efficient Fresnel lens spotlight using tungsten-quartz-halogen filament
lamps having G22 socket, L.C.L. of 63,5 mm. and max. 1,2 kW power .
≫ Available, on special request , in a version using tungsten-quartz-halogen filament
lamps having GX 9.5 socket, L.C.L. of 55 mm. and max. 1 kW power.
≫ 150 mm. diameter high quality, shock resistant Borosilicate glass Fresnel lens on
spring supports.
≫ Rugged and Lightweight Carbon Steel housing with low glare black epoxy powder
coating, with internal double walls and reinforces.
≫High efficiency convection cooling.
≫ Heavy-duty G-22 bi-post socket for tungsten halogen lamps, with lever activation and
special contacts for homogeneous current distribution over lamp’s pins.
≫ Special bimetallic clad aluminum reflector for high degree of reflectivity and thermal
resistance for long life.
≫ Stainless steel cable driven focus mechanism which guides Teflon bushings supported
lamp carriage along 2 stainless steel rails. This ensures smooth operation, and restricts
bouncing or chattering of the lamp carriage during focusing, in any tilting position of
the fixture, avoiding lamp failures during operation. The Teflon bushings also provide a
wiping action, which cleans the stainless steel guide rails during focus. The focusing
mechanism can be activated from both front and rear of the fixture and the whole spot
to flood action is accomplished with 1 and half turn of the focusing knob.
≫ The unit is equipped with a hinged lens door with wire-guard for easy access to the
lamp, it includes accessory holding brackets, which can be positioned in two different
arrangements (vertical-horizontal or diagonal). One of the 4 brackets has a locking
knob and is spring loaded, it can be locked to either safely hold barndoor, color frame
and scrims or to be rotated 90° and locked in an open position for fast accessories
changes. A double safety accessory bracket with spring loaded catch is available on
request to be assembled opposite to the locking knob.
≫ The accessories are secure regardless of the orientation of the fixture. Accessories
have been designed for one hand installation.
≫ Available with either positive lock manual yokes for comfort and ease of handling, or
pole operated yokes which can be used via the lighting pole for Panning and Tilting
the lights as well as manually, since the mechanical activators are equipped with
clutches. It is possible the conversion between the two types.

Amperage Europe 230 V 5,3A (1200W) America 120 V 8.4A (1000W) Protection Type IP22
Power supply Europe 230 V / 0-60 Hz America 110 V / 0-60 Hz Max. Housing Surface Temperature 220° C
Switch on the fixture M.O. & P.O. Toggle : 16A\125V– 8A\250V Weight of Fixture M.O. 12 kg / P.O. 7,6 kg.
Studio MO\PO No Switch Weight of Barndoor 4 leaf 0,63 kg. / 8 leaf 0,85 kg.
Lamp Holder Standard Version G22 Lever Type Size of Barndoor ring Seat Diameter 192 mm
Special Version GX9.5 Spring Type Ring Diameter 190 mm ( 7”1/2 )
Power Cable Europe 3 x 1,5 mm2 H07RN-F 90°C Weight of color frame 0,13 kg.
America 3 x 16 AWG TYPE SO 90°C Size of scrims & color frame Seat Diameter 187 mm
Protection Class Class 1– ground connection required Accessory Diameter 185 mm ( 7”1/4 )
Lens diameter 150 mm.

CHARACTERISTICS & PERFORMANCE DATA
Working Position Lighting fixture : Max. Tilting ±90° from horizontal Lamp: S90
AmbientTemperature,t +45° C Max
ᵅ
Minimum distances from inflammable surfaces Top 0,3 m. Back 0,1 m. Sides 0,1 m. Front 1 m.
