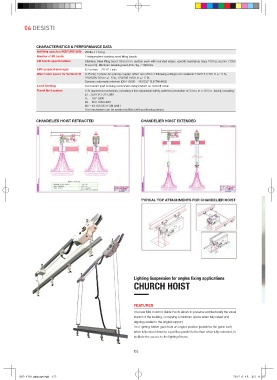

04 DESISTI

CHARACTERISTICS & PERFORMANCE DATA
Net lifting capacity of HOIST(PAYLOAD) 250lbs / 114 kg
Number of lift bands 2 independent stainless steel lifting bands.
Lift bands specifications Stainless Steel lifting band 10x0.3 mm. section each with rounded edges, specific resistance class 150 kg.:sq.mm. (1550
N:sq.mm). Minimum breaking load 458.7kg. / 1009 lbs.
Lifting speed (average) 6.2 m/min. – 20’ 6’’ / min.
Winch Unit specs for Vertical lift 0.45 kW, 3 phase AC primary supply: either one of the 3 following voltages are available 240/415 V 50 Hz +/- 5 %,
220/380V-50 Hz +/- 5 %, 120/208 V 60 Hz +/- 5 %.
Dynamic automatic interlock (DIN 15560 – 46 SELF SUSTAINING)
Load Sensing Over/under load sensing mechanism independent on each lift cable
Travel limit system TÜV approved mechanism, including 4 fine adjustable safety switches (resolution of 3 mm. in a 10.5 m. travel), including:
ET = EXTRA TOP LIMIT
TL = TOP LIMIT
BL = BOTTOM LIMIT
EB = EXTRA BOTTOM LIMIT
The mechanism can be easily retrofitted with positioning sensor.

CHANDELIER HOIST RETRACTED CHANDELIER HOIST EXTENDED

TYPICAL TOP ATTACHMENTS FOR CHANDELIER HOIST

Lighting Suspension for angles fixing applications
CHURCH HOIST

FEATURES
The new Mini Hoist for Gable Roofs allows to preserve architecturally the visual
impact of the building, occupying a minimum space when fully raised and
aligning parallel to the angled support.
The Lighting Batten goes from an angled position (parallel to the gable roof)
when fully raised down to a position parallel to the floor when fully extended, to
facilitate the access to the lighting fixtures.

122
