P. 127

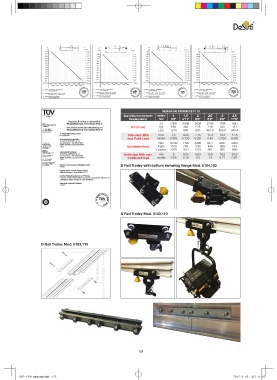

MECHANICAL PROPERTIES CT 70
Span (distance beetween meters 1 1,5 2 2,5 3 3,5
hanging points) feet 3’3’’ 4’11’’ 6’6’’ 8’2’’ 9’9’’ 11’6’’
N 5396 3598 2698 2158 1798 1541
Point load Kg. 550 366 275 219 183 157
Lbs. 1210 805 605 481.8 402.6 345.4
Deflection With mm. 1,5 4,02 7,15 11.4 14,3 17,6
max Point Load inches 0.059 0.158 0.281 0.44 0.563 0.693
N/m 10792 7195 5396 4377 3597 3083
Distributed load Kg/m 1100 733 550 446 366 314
Lbs/foo 2200 1612 1210 981 805 690
Deflection With max. mm 2 4,55 8,09 12,6 18,2 24,8
distributed load inches 0.08 0.18 0.3 1.3 0.71 0.97
D Rail Trolley with bottom swiveling flange Mod. 8104.100
D Rail Trolley Mod. 8103.110
D Rail Trolley Mod. 8103.110
125
