Special load centering clamps with bottom receivers are provided to hang lighting
fixtures and avoid any varying loads to the moving batten while raising lowering.
≫Max 25° admitted angle of the gable roof support ≫Self aligning top support
≫Self aligning lighting fixture supports
≫Compact overall closed dimension 0,60 m. and light weight
≫Net extension up to 10,5 m. For 12,5 m. max supports
≫Heigth 100 kg. net lifting capacity ≫Silent operation

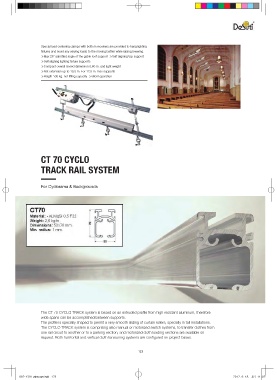

CT 70 CYCLO
TRACK RAIL SYSTEM
For Cyclorama & Backgrounds
TYPICAL TOP ATTACHMENTS FOR CHANDELIER HOIST
Lighting Suspension for angles fixing applications
The CT 70 CYCLO TRACK system is based on an extruded profile from high resistant aluminum, therefore
wide spans can be accomplished between supports.
The profile is specially shaped to permit a very smooth sliding of curtain rollers, specially in tall installations.
The CYCLO TRACK system is comprising also manual or motorized switch systems, to transfer clothes from
one rail circuit to another or to a parking section, and motorized cloth loading sections are available on
request. Both horizontal and vertical cloth tensioning systems are configured on project bases.
