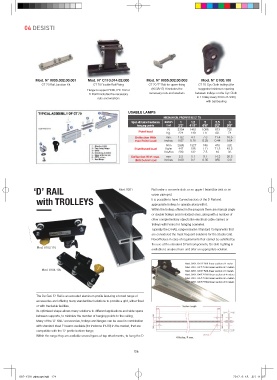

04 DESISTI

Mod. N° 9055.002.00.001 Mod. N° C110.014.02.000 Mod. N° 9055.002.00.003 Mod. N° C100.100
CT 70 Rail Junction Kit CT 70 Double Rail Fixing CT 70 “T” Bolt for upeer fixing CT 70 Cyc Cloth trolleys (the
Flange to upper IPE80, IPE 100 or (HS38/17) It includes the suggested minimum spacing
D Rail It includes the necessary necessary nuts and washers between trolleys on the Cyc Cloth
nuts and washers is 1 trolley every 30cm of cloth)
with ball bearing

USABLE LAMPS
MECHANICAL PROPERTIES CT 70
Span distance beetween meters 1 1,5 2 2,5 3
hanging points feet 3’3’’ 4’11’’ 6’6’’ 8’2’’ 9’9’’
N 2354 1461 1088 873 725
Point load Kg. 224 149 111 89. 74
Deflection With mm. 1,82 4.1 7.3 11.4 16.5
max Point Load inches 0.07 0.16 0.28 0.44 0.64
N/m 2986 1327 746 478 332
Distributed load Kg/m 447 198 111 71.5 49.5
Lbs/foo 299 132 7.5 48 33
Deflection With max. mm 2.2 5.1 9.1 14.2 20.5
distributed load inches 0.08 0.2 0.35 055 0.8

‘D’ RAIL Mod. 8201 Rail under a concrete slab, or an upper I beam/bar joist or an
upper pipe grid.
with TROLLEYS It is possible to have Curved sectors of the D Rail and
appropriate trolleys to operate along with it.
Within the trolleys offered in the program there are manual single
or double trolleys and motorized ones, along with a number of
other complementary objects like electrical cable carriers or
trolleys with hooks for hanging sceneries.
Typically the D RAIL range includes Standard Components that
are considered the most frequent solutions for the Studio Grid.
Nevertheless in case of requirements that cannot be satisfied by
the use of the standard D Rail components, De Sisti Lighting is
Mod. 8103.110
available to analyse them and offer an appropriate solution.

Mod. 8201.101 D" RAIL linear section of 1 meter
Mod. 8201.102 "D" RAIL linear section of 2 meters
Mod. 8104.105 Mod. 8201.103 D" RAIL linear section of 3 meters
Mod. 8201.104 "D" RAIL linear section of 4 meters
Mod. 8201.105 "D" RAIL linear section of 5 meters
Mod. 8201.106 "D" RAIL linear section of 6 meters

The De Sisti ‘D’ Rail is an extruded aluminum profile featuring a broad range of
accessories and offering many standardized solutions to provide a grid, either fixed
or with trackable facilities.
Its optimized shape allows many solutions to different applications and wide spans
between supports, to minimize the number of hanging points to the ceiling.
Many of the ‘D’ RAIL’ accessories, trolleys and flanges can be used in combination
with standard steel ‘I’ beams available (for instance IPE80) in the market, that are
compatible with the ‘D’ profile bottom flange.
Within the range they are available several types of top attachments, to hang the D
