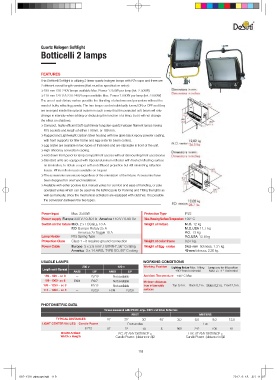

Quartz Halogen Softlight
Botticelli 2 lamps

FEATURES
This Botticelli Softlight is utilizing 2 linear quartz-halogen lamps with R7s caps and there are
2 different overall length versions (that must be specified on order):
≫189 mm 230-240V lamps available Max. Power 1.250W per lamp (tot. 2.500W)
≫118 mm 120 V & 230-240V lamps available Max. Power 1.000W per lamp (tot. 2.000W)
The use of such fixture makes possible the blending of shadows and penumbra without the
need of bulky reflecting panels. The two lamps can be individually turned ON or OFF and they
are arranged inside the optycal system in such a way that the projected soft beam will only
change in intensity when adding or deducting the function of a lamp, but it will not change
the effect on shadows.
≫ Compact, highly efficient Soft-Light linear tungsten-quartz-halogen filament lamps having
R7s sockets and length of either 118mm. or 189 mm.
≫ Rugged and Lightweight Carbon Steel housing with low glare black epoxy powder coating,
with front supports for filter frame and egg-crate for beam control.
≫Egg crates are available in two types of thickness and are stackable in front of the unit.
≫High efficiency convection cooling.
≫ Fold down front panel for lamp compartment access without dismounting front accessories
≫ Standard units are equipped with Special aluminum reflector with frosted reflecting surface
on lamination, to obtain a super soft and diffused projection but still minimizing reflection
losses. White reflectors are available on request
≫ The accessories are secure regardless of the orientation of the fixture. Accessories have
been designed for one hand installation.
≫ Available with either positive lock manual yokes for comfort and ease of handling, or pole
operated yokes which can be used via the lighting pole for Panning and Tilting the lights as
well as manually, since the mechanical activators are equipped with clutches. It is possible
the conversion between the two types.

Power Input Max. 2500W Protection Type IP22
Power supply Europe 230 V / 0-50 Hz America 110 V / 0-60 Hz Max. Housing Surface Temperature 102° C
Switch on the fixture M.O. 2 x TOGGLE 10 A Weight of Fixture M.O. 12 kg
P.O Europe Rotary 25 A M.O.USA 11.7 kg
America 2x Toggle 10 A P.O. 13 kg
Lamp Holder R7s Spring Type P.O.USA 12.8 kg
Protection Class Class 1 – it requires ground connection Weight of color frame 0,67 kg.
Power Cable Europe 3 x 2.5 mm², H07RN-F, 90° C rating Weight of Egg- crates 24,5 mm tickness, 1.31 kg.
America 3 x 14 AWG, TYPE SO, 90° C rating 49 mm tickness, 2.26 kg.

USABLE LAMPS WORKING CONDITIONS
230 v 120 v Working Position Lighting fixture Max. Tilting Lamp any for tilt position
Length-watt-filament ±90° from horizontal MAX +\- 4 ° Horizontal
ANSI LIF ANSI LIF
189 – 625 – sc 8 — P2/10 Not available Ambient Temperature +45° C Max
189 -1000- sc 8 EKM P2/7 Not available Minimum distances
189 – 1250 – sc 8 — P2/12 Not available from inflammable Top 0,4 m. Back 0,2 m. Sides 0,2 m. Front 2,5 m.
118 – 1000 – sc 8 — P2/20 FCM P2/28 surfaces

PHOTOMETRIC DATA
Values measured with: P2/20 Lamp- 230 V and Silver Reflectors
FEET METERS
TYPICAL DISTANCES 10’ 20’ 30’ 40’ 3,0 6,0 9,0 12,0
LIGHT CENTER VALUES Candle Power Footcandles Lux
8.712 87 22 10 5 968 242 108 61
BEAM ANGLE F.C. AT ANY DISTANCE = LUX. AT ANY DISTANCE =
Candle Power : (distance in ft)2 Candle Power : (distance in ft)2
Width x Heigth

119
