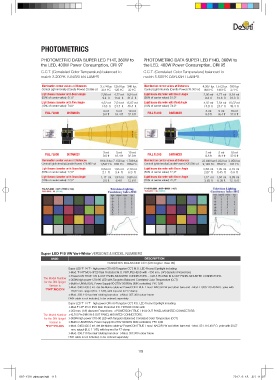

PHOTOMETRICS

PHOTOMETRIC DATA SUPER LED F14T, 360W to PHOTOMETRIC DATA SUPER LED F14D, 360W to
the LED, 400W Power Consumption, CRI 97 the LED, 400W Power Consumption, CRI 95
C.C.T. (Correlated Color Temperature) balanced to C.C.T. (Correlated Color Temperature) balanced to
match 3.200°K TUNGSTEN LAMPS match 5.600°K DAYLIGHT LAMPS

Illumination center values at Distances 3.774 lux 1.359 lux 340 lux Illumination center values at Distances 4.367 lux 1.572 lux 393 lux
Central Light intensity (Candle Power) 33.966 cd 351 FC 126 FC 32 FC Central Light intensity (Candle Power) 39.303 cd 406 FC 146 FC 37 FC
Light beam diameter with Beam Angle 2,86 mt 4,77 mt 9,54 mt Light beam diameter with Beam Angle 2,86 mt 4,77 mt 9,54 mt
(50% of center value): 51,0° 9.4 ft 15.6 ft 31.3 ft (50% of center value): 51,0° 9.4 ft 15.6 ft 31.3 ft
Light beam diameter with Field Angle 4,52 mt 7,54 mt 15,07 mt Light beam diameter with Field Angle 4,52 mt 7,54 mt 15,07 mt
(10% of center value): 74,0° 14.8 ft 24.7 ft 49.4 ft (10% of center value): 74,0° 14.8 ft 24.7 ft 49.4 ft
3 mt 5 mt 10 mt 3 mt 5 mt 10 mt
FULL FLOOD DISTANCES 9.8 ft 16.4 ft 32.8 ft FULL FLOOD DISTANCES 9.8 ft 16.4 ft 32.8 ft

3 mt 5 mt 10 mt 3 mt 5 mt 10 mt
FULL FLOOD DISTANCES 9.8 ft 16.4 ft 32.8 ft FULL FLOOD DISTANCES 9.8 ft 16.4 ft 32.8 ft
Illumination center values at Distances 19.878 lux 7.156 lux 1.789 lux Illumination center values at Distances 22.840 lux 8.222 lux 2.056 lux
CentralLightintensity(CandlePower) 178.902 cd 1,847 FC 665 FC 166a FC CentralLightintensity(CandlePower) 205.560 cd 2,122 FC 764 FC 191 FC
Light beam diameter with Beam Angle 0,63 mt 1,05 mt 2,10 mt Light beam diameter with Beam Angle 0,63 mt 1,05 mt 2,10 mt
(50% of center value): 12,0° 2.1 ft 3.4 ft 6.9 ft (50% of center value): 12,0° 2.07 ft 3.45 ft 6.9 ft
Light beam diameter with Beam Angle 1,17 mt 1,94 mt 3,89 mt Light beam diameter with Beam Angle 1,17 mt 1,94 mt 3,89 mt
(10% of center value): 22,0° 3.8 ft 6.4 ft 12.8 ft (10% of center value): 22,0° 3.83 ft 6.38 ft 12.75 ft

Super LED F10 VW Vari-White VERSIONS & MODEL NUMBERS
MOD DESCRIPTION
TUNGSTEN BALANCED CCT (CRI higher than 90)
Super LED "F 14 T" - high power CRI>90 Tungsten CCT, M.O. LED Fresnel Spotlight including:
≫Mod. "F14T".MO.H IP23 Rain Protected M.O. FIXTURE HEAD with - 350 mm. (14”) diameter Fresnel lens
≫PowerCON TRUE 1 IN & OUT PANEL MOUNTED CONNECTORS. - XLR 5 Pin DMX IN & OUT PANEL MOUNTED CONNECTORS.
The Model Number ≫360W high power CRI>90 LED with Tungsten Balanced Correlated Color Temperature (CCT)
for the DIN Spigot ≫Built In UNIVERSAL Power Supply 80-270V 50/60Hz DMX controlled, PFC 0,96
Version is ≫ Mod. 5403.435 3 mt. det.ble Mains cable w/ PowerCON TRUE 1 mod. NAC3FX-W and other bare end - Mod. LT350.110.40 M.O. yoke with
“F14T”.MO.DIN 28,57 mm. spigot (B.S. 1 1/8"), with top end for "C" clamp
≫Mod. 356.110 four leaf rotating barndoor ≫Mod. 357.300 colour frame
DMX cable is not included, to be ordered separately
Super LED "F 14 T" - high power CRI>90 Tungsten CCT, P.O. LED Fresnel Spotlight including:
≫Mod."F14T".PO.H IP23 Rain Protected P.O. FIXTURE HEAD with
≫350 mm. (14”) diameter Fresnel lens ≫POWERCON TRUE 1 IN & OUT PANEL MOUNTED CONNECTORS.
The Model Number ≫XLR 5 Pin DMX IN & OUT PANEL MOUNTED CONNECTORS.
for the DIN Spigot ≫360W high power CRI>90 LED with Tungsten Balanced Correlated Color Temperature (CCT)
Version is ≫Built In UNIVERSAL Power Supply 80-270V 50/60Hz DMX controlled, PFC 0,96
“F14T”.PO.DIN ≫ Mod. 5403.435 3 mt. det.ble Mains cable w/ PowerCON TRUE 1 mod. NAC3FX-W and other bare end - Mod. 351.110.40 P.O. yoke with 28,57
mm. spigot (B.S. 1 1/8"), with top end for "C" clamp
≫Mod. 356.110 four leaf rotating barndoor ≫Mod. 357.300 colour frame
DMX cable is not included, to be ordered separately
