04 DESISTI

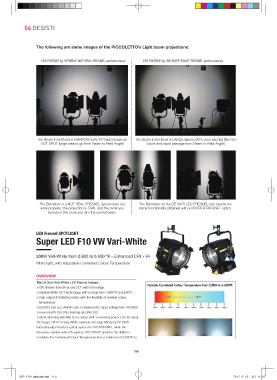

The following are some images of the PICCOLETTO’s Light beam projections:

LED FIXTURE by “OTHERS” NOT REAL FRESNEL performances LED FIXTURE by “DE SISTI” EXACT FRESNEL performances

The Beam in full flood is NARROW (only 45°) and shows an The Beam in full flood is LARGE (above 60°), even and flat (No Hot
HOT SPOT (large area to go from Beam to Field Angle) Spots and rapid passage from Beam to Field Angle)

The Barndoor in a NOT REAL FRESNEL optics does not The Barndoor on the DE SISTI LED FRESNEL has exactly the
work properly: the projection is OVAL and the more you same functionality obtained with a PROPER FRESNEL optics.
barndoor the more you dim the central beam

LED Fresnel SPOTLIGHT
Super LED F10 VW Vari-White

200W Vari-White from 2.800 to 6.600 °K - Enhanced CRI > 94
White light, with Adjustable Correlated Colour Temperature

OVERVIEW
The De Sisti Vari-White LED Fresnel feature:
≫CRI Greater than 94 at any CCT within the range
≫Variable White CCT technology, with a range from 2,800°K to 6,600°K
≫ High output & Patented optics with the flexibility of variable colour
temperature
≫50,000 Hour LED ARRAY Life ≫Universal A/C input voltage from 90-250V
≫True smooth 100-0% Dimming via DMX 512
≫Silent dimming with little to no colour shift ≫Universal power-Con AC input
The Super LED F10 Vary-White maintains the high efficiency DE SISTI
Internationally Patented optical system for LED FRESNEL, while the
innovative variable white Phosphors LED ARRAY provides the ability to
modulate the Correlated Colour Temperature from a minimum of 2.800°K to

110
