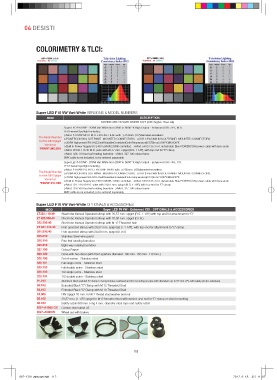

04 DESISTI

COLORIMETRY & TLCI:

Super LED F10 VW Vari-White VERSIONS & MODEL NUMBERS
MOD DESCRIPTION
SUPER LED F6 VARI WHITE CCT (CRI higher than 94)
Super LED "F10VW" - 200W Vari White from 2800 to 6600 °K High Output - Enhanced CRI > 94 , M.O.
LED Fresnel Spotlight including:
≫Mod. "F10VW".MO.H M.O. FIXTURE HEAD with ≫250mm. (10”)diameterFresnellens
The Model Number ≫POWERCON IN & OUT PANEL MOUNTED CONNECTORS. ≫XLR 5 Pin DMX IN & OUT PANEL MOUNTED CONNECTORS.
for the DIN Spigot ≫200W highpowerCRI>94LEDwithVariableCorrelatedColorTemperature(CCT)from2.800°Ktill6.600°K
Version is ≫Built In Power Supply 90-240V 50/60Hz DMX controlled. ≫Mod. 5403.135 3 mt. detachable Blue POWERCON power cable with bare ends
“F10VW”.MO.DIN ≫Mod. LT320.110.40 M.O. yoke with 28,57 mm. spigot (B.S. 1 1/8"), with top end for "C" clamp
≫Mod. 326.110 four leaf rotating barndoor ≫Mod. 327.100 colour frame
DMX cable is not included, to be ordered separately
Super LED "F10VW" - 200W Vari White from 2800 to 6600 °K High Output - Enhanced CRI > 94 , P.O.
LED Fresnel Spotlight including:
≫Mod. "F10VW".PO.H P.O. FIXTURE HEAD with ≫250mm. (10”)diameterFresnellens
The Model Number ≫POWERCON IN & OUT PANEL MOUNTED CONNECTORS. ≫XLR 5 Pin DMX IN & OUT PANEL MOUNTED CONNECTORS.
for the DIN Spigot ≫200W highpowerCRI>94LEDwithVariableCorrelatedColorTemperature(CCT)from2.800°Ktill6.600°K
Version is ≫Built In Power Supply 90-240V 50/60Hz DMX controlled. ≫Mod. 5403.135 3 mt. detachable Blue POWERCON power cable with bare ends
“F10VW”.PO.DIN ≫Mod. 321.110.40 P.O. yoke with 28,57 mm. spigot (B.S. 1 1/8"), with top end for "C" clamp
≫Mod. 326.100 four leaf rotating barndoor ≫Mod. 327.100 colour frame
DMX cable is not included, to be ordered separately

Super LED F10 VW Vari-White OPTIONALS & ACCESSORIES
MOD Super LED F6 VW - Enhanced CRI - OPTIONALS & ACCESSORIES
LT320.110.40 Steel tube Manual Operated stirrup with 28,57 mm. spigot (B.S. 1 1/8’’) with top end for attachment to “C”
LT 320.300.40 Steel tube Manual Operated stirrup with 28,00 mm. spigot (D.I.N.)
320.220.40 Steel tube Manual Operated stirrup with M 12 Threaded hole
LT 321.110.40 Pole operated stirrup with 28,57 mm. spigot (B.S. 1 1/8"), with top end for attachment to "C" clamp.
321.300.40 Pole operated stirrup with 28,00 mm. spigot (D.I.N.)
325.310 Stainless Steel wire guard
326.110 Four leaf rotating barndoor
326.210 Eight way rotating barndoor
327.100 Colour Frame
328.100 Cone with two discs (with front aperture diameter: 190 mm. 150 mm. 110 mm.)
329.100 Set of scrims - Stainless steel
329.101 Full single scrim - Stainless steel
329.102 Full double scrim - Stainless steel
329.103 1/2 single scrim - Stainless steel
329.104 1/2 double scrim - Stainless steel
91.210 Aluminum black painted "C" clamp to hang fixtures overhead and for mounting on pipe with diameters up to 52 mm. (2"), with safety pin (no adapters)
93.102 Extruded Black "C" Clamp with M 12 Threaded Stud
93,103 Extruded Black "C" Clamp with M 10 Threaded Stud
15.300 DIN Spigot 28 mm. to M12 thread stud washer and nut
95.100 28,57 mm. (1 1/8’’) spigot to M12 threaded stud with washer and nut for “C” clamp or stand mounting
20.100 Safety cable 800 mm. long 4 mm. diameter steel rope and safety catch
DGP-A1035 CS Combo steel stand 35
DGP-A9000N Wheel set with brakes
