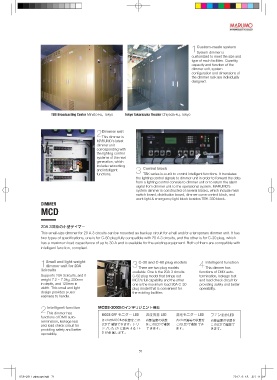

1
Custom-made system
System dimmer is
customized to meet the size and
type of each facilities. Quantity,
capacity and function of the
dimmer unit, system
configuration and dimensions of
the dimmer rack are individually
designed.

TBS Broadcasting Center Minato-ku, Tokyo Tokyo Takarazuka Theater Chiyoda-ku, Tokyo

2
Dimmer unit
This dimmer is
MARUMO’s latest
dimmer unit
corresponding with
the lighting control
systems of the next
generation, which
include networking
and intelligent 3 Control block
functions. TBK series is a unit to control intelligent functions. It translates
the lighting control signals to dimmer unit in order to forward the data
from a lighting control console to dimmer unit or to return the alarm
signal from dimmer unit to the operational system. MARUMO’s
system dimmer is constructed of several blocks, which include main
switch board, distribution board, dimmer curve control block, and
work light & emergency light block besides TBK-330 block.
DIMMER
MCD

20A 3回路の小型ディマー
This small-size dimmer for 20 A 3 circuits can be mounted as backup circuit for a hall and/or a temporary dimmer unit. It has
two types of specifications, one is for C-60 plug fully compatible with 20 A 3 circuits, and the other is for C-30 plug, which
has a maximum load capacitance of up to 30 A and is available for the existing equipment. Both of them are compatible with
intelligent function, compliant.

Small and light weight C-30 and C-60 plug models Intelligent function
1 dimmer unit for 20A 3 There are two plug models 4
This dimmer has
3circuits available. One is the 20A 3 circuits functions of DMX auto-
Supports 20A 3circuits, and it C-60 plug model that brings out termination, leakage test
weight 7.2 ~ 7.3kg, 250mm MCD’s full capability and the other and load check circuit for
in depth, and 120mm in one is the maximum load 30A C-30 providing safety and better
width. This small and light plug model that is convenient for operability.
design provides a user the existing facilities.
easiness to handle.

2 Intelligent function MCD2-2003Iのインテリジェント機能
This dimmer has
functions of DMX auto- MCCB OFF モニター LED 温度異常 LED 漏電モニター LED ファン動作LED
termination, leakage test 各chのMCCBの状態をこの 内部温度の状態 各chの漏電の状態を 内部温度の状態を
and load check circuit for LEDで 確認できます。トリ をこのLEDで確認 このLEDで確認 でき このLEDで確認で
providing safety and better ップした ch に該当 する L E で きます。 ます。 きます。
operability. D が点 滅します。
