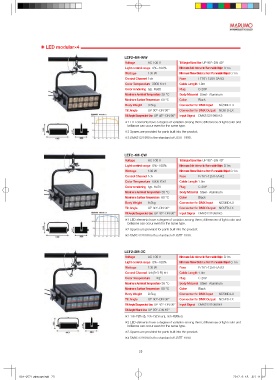

Page 25 - 루스케이프 방송무대 지명원

⁕ LED modular×4
001-057 Lughscape.indd
LEF2-4M-WW
Voltage AC 100 V Tilt Angle/Stand Use UP 90°~DN 40°
Light control range 0%~100% Minimum Safe Interval to Flammable Objec 0.1m
Wattage 130 W Minimum Throw Distance from Flammable Object 0.1m
Control Channel 1ch Fuse F7161-125V-5A※2
Color Temperature 3000 K※1 Cable Length 1.0m
Color rendering typ. Ra85 Plug C-20P
Maximum Ambient Temperature 35 °C Body Material Steel · Aluminum
Maximum Surface Temperature 60 °C Color Black
Body Weight 9.5kg Connector for DMX Input NC5MD-LX
Tilt Angle UP 90°~DN 90° Connector for DMX Output NC5FD-LX
Tilt Angle/Suspended Use UP 45°~DN 90° Input Signal DMX512/1990※3
※1 LED elements have a degree of variation among them; differences of light color and
brilliance can occur even for the same type.
※2 Spares are provided for parts built into the product.
※3 DMX512/1990 is the standard of USITT 1990.
LEF2-4M-CW
Voltage AC 100 V Tilt Angle/Stand Use UP 90°~DN 40°
Light control range 0%~100% Minimum Safe Interval to Flammable Objec 0.1m
Wattage 130 W Minimum Throw Distance from Flammable Object 0.1m
Control Channel 1ch Fuse F7161-125V-5A※2
Color Temperature 6000 K※1 Cable Length 1.0m
Color rendering typ. Ra70 Plug C-20P
Maximum Ambient Temperature 35 °C Body Material Steel · Aluminum
Maximum Surface Temperature 60 °C Color Black
Body Weight 9.5kg Connector for DMX Input NC5MD-LX
Tilt Angle UP 90°~DN 90° Connector for DMX Output NC5FD-LX
Tilt Angle/Suspended Use UP 45°~DN 90° Input Signal DMX512/1990※3
※ 1 LED elements have a degree of variation among them; differences of light color and
brilliance can occur even for the same type.
※2 Spares are provided for parts built into the product.
※3 DMX512/1990 is the standard of USITT 1990.
LEF2-2M-3C
Voltage AC 100 V Minimum Safe Interval to Flammable Objec 0.1m
Light control range 0%~100% Minimum Throw Distance from Flammable Object 0.1m
Wattage 130 W Fuse F7161-125V-5A※3
Control Channel 3ch(R·G·B) ※1 Cable Length 1.0m
Color Temperature — ※2 Plug C-20P
Maximum Ambient Temperature 35 °C Body Material Steel · Aluminum
Maximum Surface Temperature 60 °C Color Black
Body Weight 9.5kg Connector for DMX Input NC5MD-LX
Tilt Angle UP 90°~DN 90° Connector for DMX Output NC5FD-LX
Tilt Angle/Suspended Use UP 45°~DN 90° Input Signal DMX512/1990※4
Tilt Angle/Stand Use UP 90°~DN 40°
※1 1ch-R(Red), 2ch-G(Green), 3ch-B(Blue)
※ 2 LED elements have a degree of variation among them; differences of light color and
brilliance can occur even for the same type.
※3 Spares are provided for parts built into the product.
※4 DMX512/1990 is the standard of USITT 1990
23
