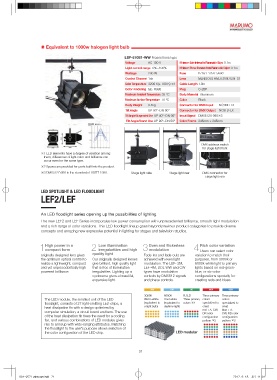

⁕ Equivalent to 1000w halogen light bulb
LSF-810S1-WW Fresnel lens type
Voltage AC 100 V Minimum Safe Interval to Flammable Objec 0.1m
Light control range 0%~100% Minimum Throw Distance from Flammable Object 0.1m
Wattage 200 W Fuse F7161-125V-5A※2
Control Channel 1ch Lens MENISCUS HIVEX 200D120F S1
Color Temperature 3200 K(± 100 K) ※1 Cable Length 1.0m
Color rendering typ. Ra90 Plug C-20P
Maximum Ambient Temperature 35 °C Body Material Aluminum
Maximum Surface Temperature 70 °C Color Black
Body Weight 9.4kg Connector for DMX Input NC5MD-LX
Tilt Angle UP 90°~DN 90° Connector for DMX Output NC5FD-LX
Tilt Angle/Suspended Use UP 40°~DN 90° Input Signal DMX512/1990※3
Tilt Angle/Stand Use UP 90°~DN 50° Color Frame 245mm × 245mm

DMX address switch
for stage light front
※ 1 LED elements have a degree of variation among
them; differences of light color and brilliance can
occur even for the same type.
※2 Spares are provided for parts built into the product.
※3 DMX512/1990 is the standard of USITT 1990. Stage light side Stage light rear DMX connector for
stage light rear

LED SPOTLIGHT & LED FLOODLIGHT
LEF2/LEF

An LED floodlight series opening up the possibilities of lighting.
The new LEF2 and LEF Series incorporates low power consumption with unprecedented brilliance, smooth light modulation
and a rich range of color variations. This LED floodlight lineup goes beyond previous product categories to provide diverse
concepts and amazing new expressive potential in lighting for stages and television studios.

High power in a Low illumination Even and flickerless Rich color variation
Users can select color
1 compact form 2 irregularities and high 3 modulation 4
originally designed lens gives quality light Fade-ins and fade-outs are variation to match their
the optimum optical control to Our originally designed lenses achieved with even light purposes, from 3000k or
realize a lightweight, compact give brilliant, high quality light modulation. The LEF- 2M, 6000k white light to primary
and yet unprecedentedly high that is free of illumination LEF-4M, DDL WW and CW lights based on red-green-
powered brilliance. irregularities. Lighting up a types have modulation blue, or six-color
cyclorama gives a beautiful, controls by DMX512 signals configurations specially for
expansive light. and phase controls. creating reds and blues.

3000K 6000K R,G,B Three primary Three primary
The LED module, the smallest unit of the LED Warm white Cool white Three primary colors colors
floodlight, consists of 27 light-emitting LED chips, a (equivalent to (equivalent to colors ※ 1 specialized to specialized to
heat dissipation fin with a design optimized by a light bulb) daytime light) creat creat
computer simulation, a circuit board and lens. The use red + A, CW, blue + A,
CW, RB color
DR color
of the heat dissipation fin frees the need for a cooling configuration configuration
fan, and various combinations of LED modules gives pattern ※2 pattern ※3
rise to a lineup with wide-ranging attributes. Matching
the floodlight to the user’s purpose allows selection of
the color configuration of the LED chip. LED modular
