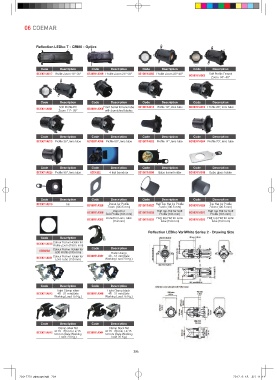

06 COEMAR

Reflection LEDko T - CRI90 - Optics

Code Description Code Description Code Description Code Description
BC10011A017 Profile Zoom 15°-35° BC10011A019 Profile Zoom 25°-50° BC10011A003 Profile Zoom 28°-40° Soft Profile Fresnel
BC10011A002 Zoom 14°- 40°

Code Description Code Description Code Description Code Description
Soft Profile PC Front barrel for lens tube BC10011A012 Profile 19°, lens tube BC10011A013 Profile 26°, lens tube
BC10011A001 Zoom 11°- 38° BC10011A200 with burnished blades

Code Description Code Description Code Description Code Description
BC10011A015 Profile 36°, lens tube BC10011A016 Profile 50°, lens tube BC10011A023 Profile 14°, lens tube BC10011A024 Profile 70°, lens tube

Code Description Code Description Code Description Code Description
BC10011A025 Profile 90°, lens tube ACO4202 4 leaf barndoor BC10011A006 Gobo frame holder BC10011A030 Gobo glass holder

Code Description Code Description Code Description Code Description
BC10011A010 Iris Donut for Profile Half Top Hat for Profile Top Hat for Profile
BC10011A028 Zoom (190.5 mm) BC10011A027 Zoom (190.5 mm) BC10011A029 Zoom (190.5 mm)
Donut for Half Top Hat for Soft Half Top Hat for Soft
BC10011A036 Soft Profile (185 mm) BC10011A035 Profile (185 mm) BC10011A037 Profile (185 mm)
Donut for Lens Tube Half Top Hat for Lens Half Top Hat for Lens
BC10011A032 (159 mm) BC10011A031 Tube (159 mm) BC10011A033 Tube (159 mm)

Reflection LEDko VariWhite Series 2 - Drawing Size
Code Description
Colour Frame Holder for
BC10011A040 Profile Zoom (190.5 mm)
Colour Frame Holder for Code Description
ACO4204 Soft Profile (185 mm) Hook Clamp
Colour Frame Holder for BC10011A047 48 - 51 mm(Safe
BC10011A021 Lens Tube (159 mm) Working Load 20 Kg.)

Code Description Code Description
Light Clamp silver Light Clamp black
BC10011A045 48 - 51 mm(Safe BC10011A046 48 - 51 mm(Safe
Working Load 75 Kg.) Working Load 75 Kg.)

Code Description Code Description
Clamp silver flat Clamp black flat
at 13 - 30 mm / ø 15 - at 13 - 30 mm / ø 15 -
BC10011A043 50 mm (Safe Working BC10011A044 50 mm (Safe Working
Load: 20 Kg.) Load 20 Kg.)
