06 COEMAR

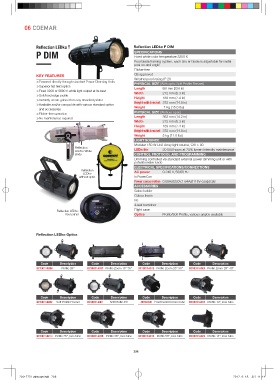

Reflection LEDko T Reflection LEDko P DIM
P DIM SPECIFICATIONS
Fixed white color temperature 3200 K
Four blade framing system, each shu er blade is adjustable for radial
posi on and angle
Flicker-free
CE approved
KEY FEATURES Weatherproof rating IP 20
≫ Powered directly through standard Power Dimming Units PHYSICAL SIZE (With optic Soft Profile Fresnel)
≫ Superior flat field optics 601 mm (23.6 in)
≫ Fixed 3200 or 5600 K white light output at its best Length 212 mm (8.3 in)
≫ Soft/hard edge profile Width 189 mm (7.4 in)
≫ Instantly create gobos from any standard printer Height
≫ Available and/or compa ble with various standard optics Height with bracket 372 mm (14.6 in)
and accessories Weight 7 Kg (15.0 lbs)
≫ Flicker-free operation PHYSICAL SIZE (Without optic)
≫ No maintenance required Length 362 mm (14.2 in)
Width 212 mm (8.3 in)
Height 189 mm (7.4 in)
Height with bracket 372 mm (14.6 in)
Weight 5 kg (11.0 lbs)
LIGHT SOURCE
Modular 150 W LED Array light source, CRI > 90
Reflection 20.000 hours at 70% lumen intensity maintenance
LEDKo White LEDs life
Body CONTROL PROTOCOL AND PROGRAMMING
Dimming controlled via standard external power dimming unit or with
potentiometer knob
ELECTRICAL SPECIFICATIONS/CONNECTIONS
Reflection 0-240 V, 50/60 Hz
LEDko AC power
without optic In PowerCon
Power consumotion 0.85Aat230V,1.64Aat115V-cosφ0,98
ACCESSORIES
Gobo holder
Colour frame
Iris
4-leaf barndoor
Reflection LEDko Flight case
Rear panel Optics Profile/Soft Profile, various angles available

Reflection LEDko Optics

Code Description Code Description Code Description Code Description
BC10011A004 Profile 26° BC10011A017 Profile Zoom 15°-35° BC10011A019 Profile Zoom 25°-50° BC10011A003 Profile Zoom 28°-40°

Code Description Code Description Code Description Code Description
BC10011A002 Soft Profile Fresnel BC10011A001 Soft Profile PC ZETC012E Front barrel for lens tube BC10011A012 Profile 19°, lens tube

Code Description Code Description Code Description Code Description
BC10011A013 Profile 26°, lens tube BC10011A015 Profile 36°, lens tube BC10011A016 Profile 50°, lens tube BC10011A023 Profile 14°, lens tube
